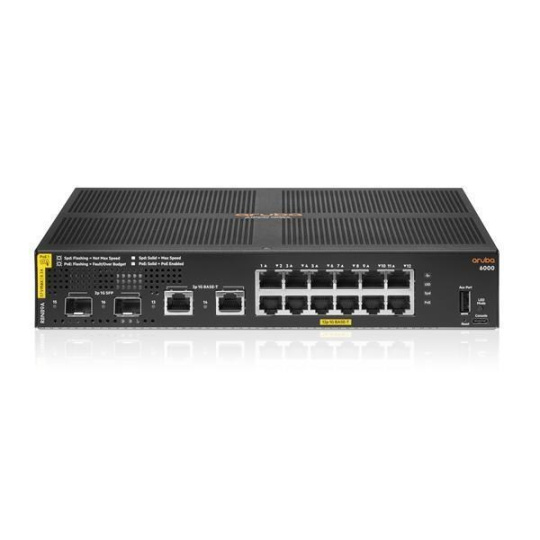

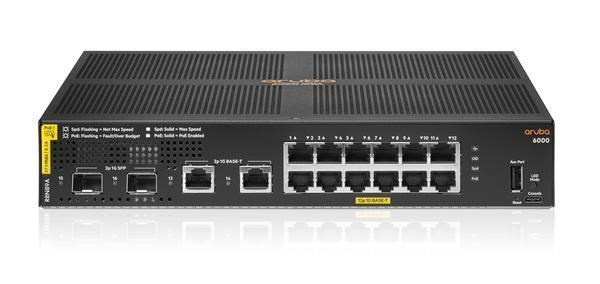

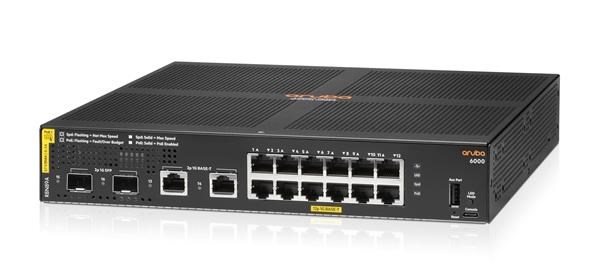

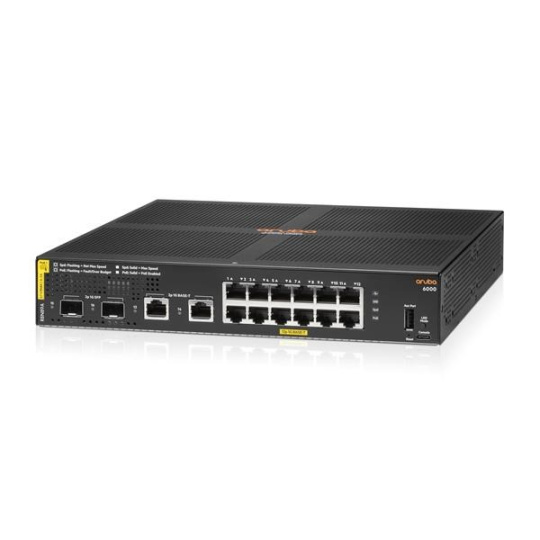

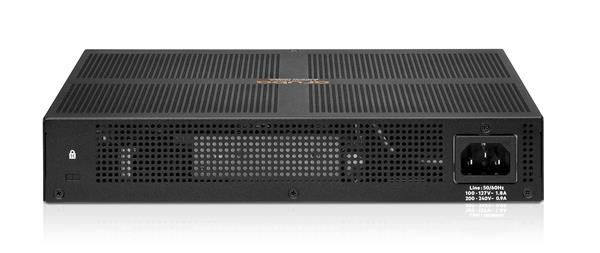

HPE Aruba Networking CX 6000 12G Class4 PoE 2G/2SFP 139W Switch R8N89AR RENEW
HPE Aruba Networking CX 6000 12G Class4 PoE 2G/2SFP 139W Switch R8N89AR RENEW
HPE Aruba Networking CX 6000 12G Class4 PoE 2G/2SFP 139W Switch R8N89AR RENEW
12x ports 10/100/1000BASE-T Ports
2x 1G SFP ports
2x 1GbE ports
Supports PoE Standards IEEE 802.3af, 802.3at
1x USB-C Console Port 1x USB Type-A Host port
Power supplies Fixed power supply Up to 139W of Class 4 PoE Power
Fans Fanless
Dimensions (H) 4.39 cm (W) 25.4 cm (D) 25.5 cm
Configuration Weight 2.78 kg
CPU Dual Core ARM Cortex A9 @ 1016 Mhz
Memory and Flash 4 GB DDR3 16 GB eMMC
Packet Buffer 12.38MB (4.5MB Ingress/7.875MB Egress)
Model Switching Capacity 32 Gbps
Model Throughput Capacity 23.8 Mpps
Average Latency (LIFO-64-bytes packets) 1 Gbps: 2.3 µSec
Switched Virtual Interfaces (dual stack) 16
IPv4 Host Table (ARP) 1,024
IPv6 Host Table (ND) 512
IPv4 Unicast Routes 512
IPv6 Unicast Routes 512
MAC Table Capacity 8,192
IGMP Groups 512
MLD Groups 512
IPv4/IPv6/MAC ACL Entries (ingress) 256 / 128 / 256
Operating Temperature 32°F to 113°F (0°C to 45°C) up to 5000 ft (1.5 km) derate -1°C for every 1000 ft (305 m) from 5000 ft (1.5 km) to 10000 ft (3.0 km)
Operating Relative Humidity 15% to 95% at 104°F (40°C) non-condensing
Non-Operating -40°F to 158°F (-40°C to 70°C) up to 15000 ft (4.6 km)
Non-Operating Storage Relative Humidity 15% to 90% @ 149°F (65°C) non-condensing
Max Operating Altitude 10000 feet (3 km) Max
Max Non-Operating Altitude 15000 feet (4.6 km) Max
Acoustic Sound Power, LWAd = 0 Bel Sound Pressure, LpAm (Bystander) = 0 dB
Primary Airflow
Frequency 50 / 60 Hz
AC Voltage 100-127 VAC / 200-240 VAC
Current 1.8 A / 0.9 A
Power Consumption (230 VAC) idle: 16W Max Power (w/o PoE): 21.9W Max Power (w/ PoE): 170W
Safety UL 60950-1; IEC 60950-1; EN 60950-1; CAN/ CSA-C22.2 No. 60950-1; EN 60825-1 UL 62368-1 Ed. 2; IEC 62368-1 Ed. 2; EN 62368-1:2014
Emissions VCCI-CISPR 32, Class A; CNS 13438; ICES-003 Issue 6 Class A; FCC CFR 47 Part 15, Class A; EN 55032: 2015 +AC:2016 / CISPR-32, Class A
Lasers EN 60825-1:2007 / IEC 60825-1:2007 Class 1Class 1 Laser Products / Laser Klasse 1 (Applicable for accessories - Optical Transceivers only)
Mounting and Enclosure Mounts in an EIA-standard 19-inch telco rack or equipment cabinet (rack-mounting kit available); horizontal surface mounting; wall mounting
