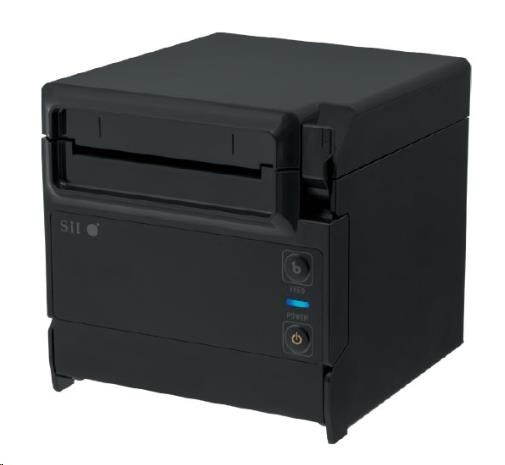

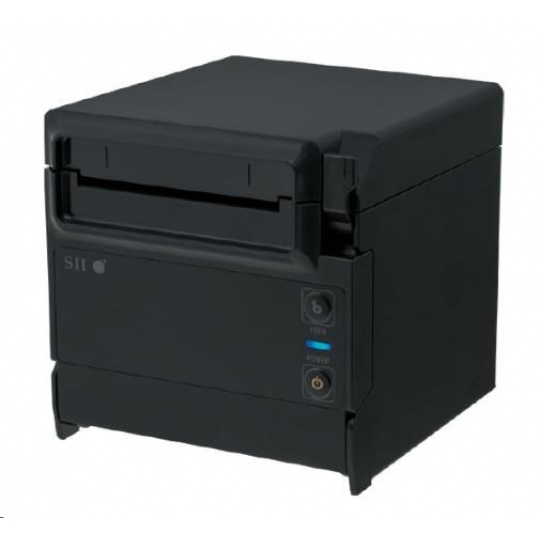

Seiko pokladní tiskárna RP-F10, řezačka, Horní/Přední výstup, USB, černá, zdroj
Popis a parametry
Seiko pokladní tiskárna RP-F10, řezačka, Horní/Přední výstup, USB, černá, zdroj
2-way : Paper top-exit and front-exit (IPx1)
Compact cube : 127mm x 127mm x 127mm
Max printing speed : 250mm/sec
Optional 4.3 inch color LCD can be mounted on RP-F10
Easy pairing with a Bluetooth terminal via NFC (Bluetooth Model)
Cutter lock automatic restoration mechanism
Various drivers and wide variety utility software
| Model | RP-F10 | ||
|---|---|---|---|
| *1 Use recommended thermal papers. *2 Excluding protrusion. ESC/POS™: Registered trademark of SEIKO EPSON CORP. Windows® is the registered trademark of Microsoft Corporation(USA). Android™ is a trademark of Google Inc. This product is under development. The specs are subject to change. | |||
| Printing | Method | Thermal line dot printing | |
| Resolution (dpi) | 203 (8dots/mm) | ||
| Paper width (mm) | 58 / 80 | ||
| Printing width (mm) | 54 / 72 | ||
| Speed (mm/sec) max | 250 | ||
| Outside diameter of paper roll (mm) max | ? 83 | ||
| Character matrix (H × W dots) | 24 × 12, 24 × 24, 16 × 8, 16 × 16 | ||
| Character size (H × W mm) | 3.0 × 1.5, 3.0 × 3.0, 2.0 × 1.0, 2.0 × 2.0 | ||
| Type of Paper | Roll paper | ||
| Character type | Code page(14pages), International character, Optional font, Downloaded character, JIS 1&2 Level Kanji Special character, User-defined character | ||
| Bar code | UPC-A/E, JAN(EAN)8/13, ITF, CODABAR, Code39, Code93, Code128, QR, PDF417, GS1 Databar | ||
| Power supply | Specified AC adapter, External power (DC24±10%) | ||
| Communication interface | USB+USB-host | ||
| Input buffer | 4K bytes | ||
| Command | ESC/POS™ conformity | ||
| Cutting | Method | Slide type | |
| Cutting type | Full cut, Partial cut (Leave center point) | ||
| Operating temperature (°C) | 5 to 45 | ||
| Service life | Abrasion resistance (km) | 150*1 | |
| Paper cutting (cut) | 1,500,000*1 | ||
| Dimensions (W×D×H mm) | 127.0 × 127.0 × 127.0*2 | ||
| Mass (g) | Approx. 840 | ||
| Standard | FCC, CE, VCCI | ||
| Option | Wall mounting Kit, Buzzer, LCD (4.3inch color) | ||
| Cash drawer | 2 drivers (24V / 1A) | ||
| Body color | 2 colors: White / Black | ||
| Software | Windows® : Printer Driver, Virtual COM Driver, OPOS Driver, POS for .Net Driver / SDK / Utility Linux® : CUPS Filter (Driver) / Communication Library (SDK) Android™ : SDK / Utility, iOS:SDK/Utility | ||
.
ParametryPorovnání
Tisková technologie
Termo
Konektivita
USB
Kategorie
Standard
Typ tiskárny
Stolní
