MSI VGA NVIDIA GeForce RTX 3060 VENTUS 2X 12G OC, 12G GDDR6, 3xDP, 1xHDMI
Popis a parametry
MSI VGA NVIDIA GeForce RTX 3060 VENTUS 2X 12G OC, 12G GDDR6, 3xDP, 1xHDMI
GeForce RTX™ 3060 VENTUS 2X 12G OC
The GeForce RTX™ 3060 lets you take on the latest games using the power of Ampere—NVIDIA's 2nd generation RTX architecture. Get incredible performance with enhanced Ray Tracing Cores and Tensor Cores, new streaming multiprocessors, and high-speed G6 memory.
Boost Clock / Memory Speed
- 1807 MHz / 15 Gbps
- 12GB GDDR6

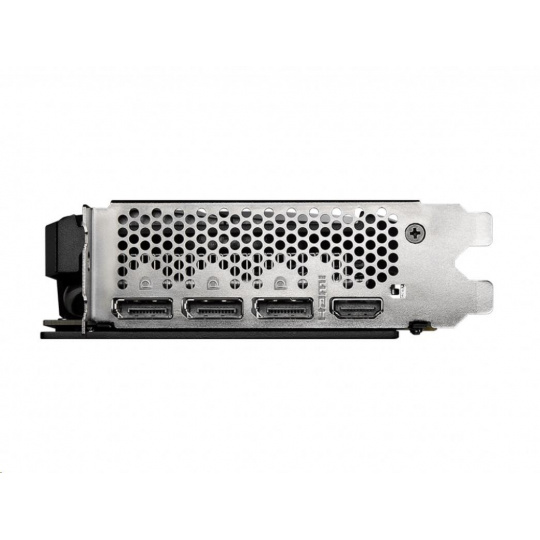

- DisplayPort x 3
- HDMI x 1 (Supports 4K@120Hz as specified in HDMI 2.1)

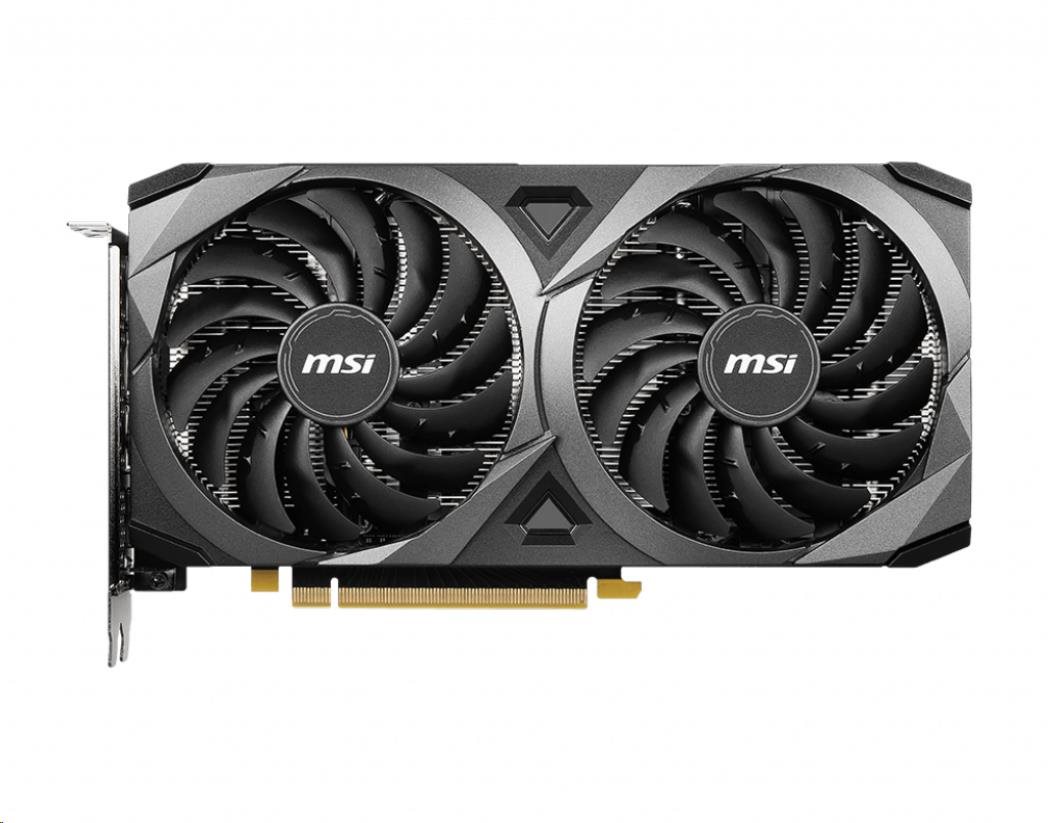

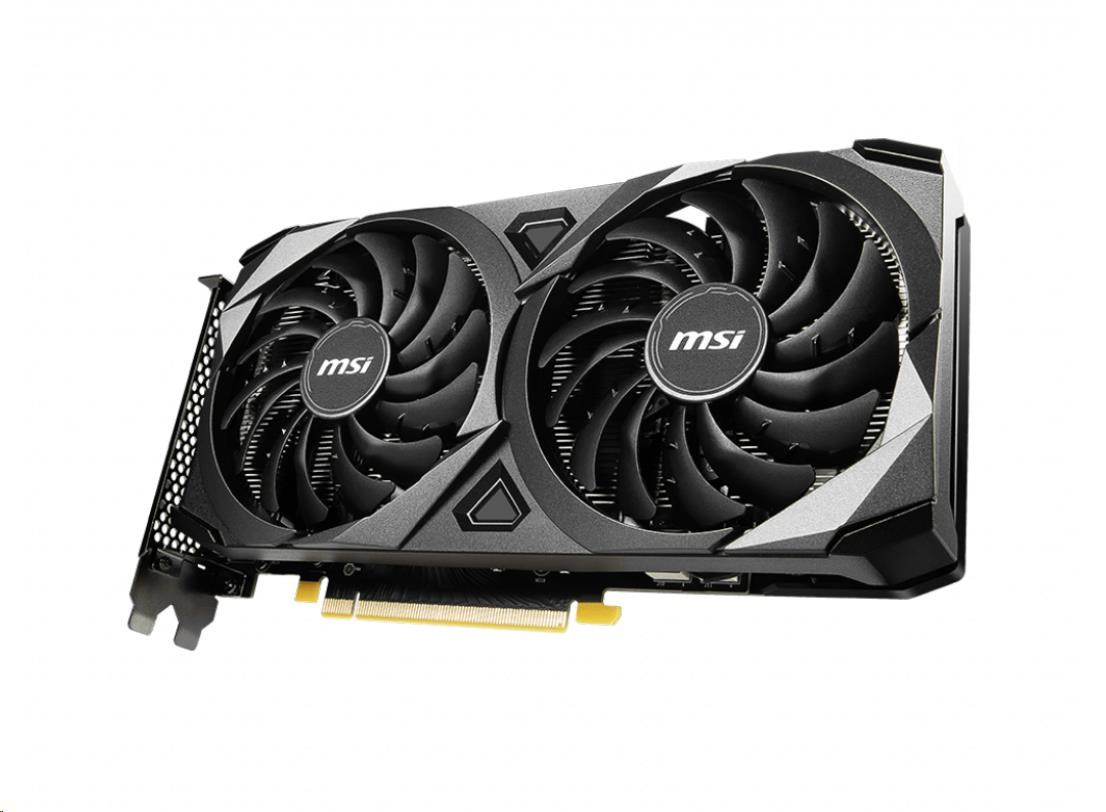

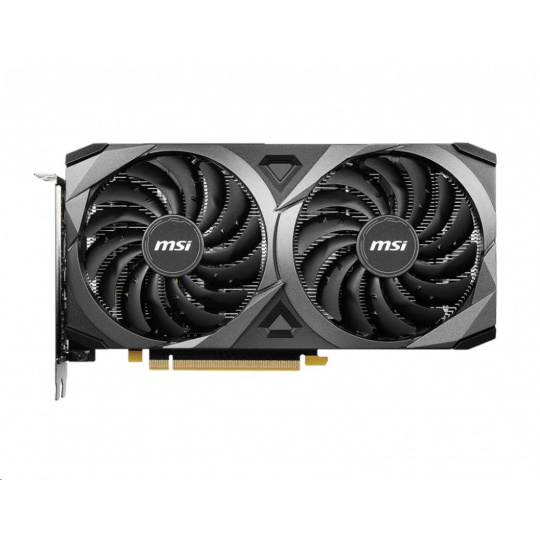

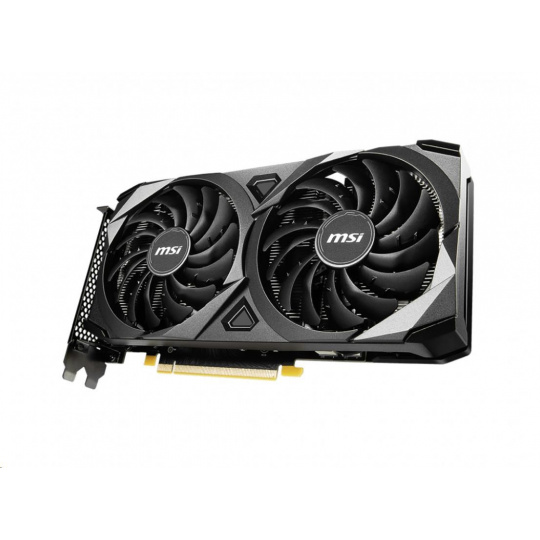

Dual Fan Thermal Design
- TORX Fan 3.0: The award-winning MSI TORX Fan 3.0 design creates high static pressure and pushes the limits of thermal performance.
Dragon Center
- MSI's exclusive Dragon Center software lets you monitor, tweak and optimize MSI products in real-time.
After Overlocking Utility
- Supports multi-GPU setups.
- OC Scanner: An automated function finds the highest stable overclock settings.
- On Screen Display: Provides real-time information of your system's performance.
- Predator: In-game video recording.
TECHNICAL SPECIFICATIONS
| Model Name | GeForce RTX™ 3060 VENTUS 2X 12G OC |
| Graphics Processing Unit | NVIDIA® GeForce RTX™ 3060 |
| Interface | PCI Express® Gen 4 |
| Cores | 3584 Units |
| Core Clocks | Boost: 1807 MHz |
| Memory Speed | 15 Gbps |
| Memory | 12GB GDDR6 |
| Memory Bus | 192-bit |

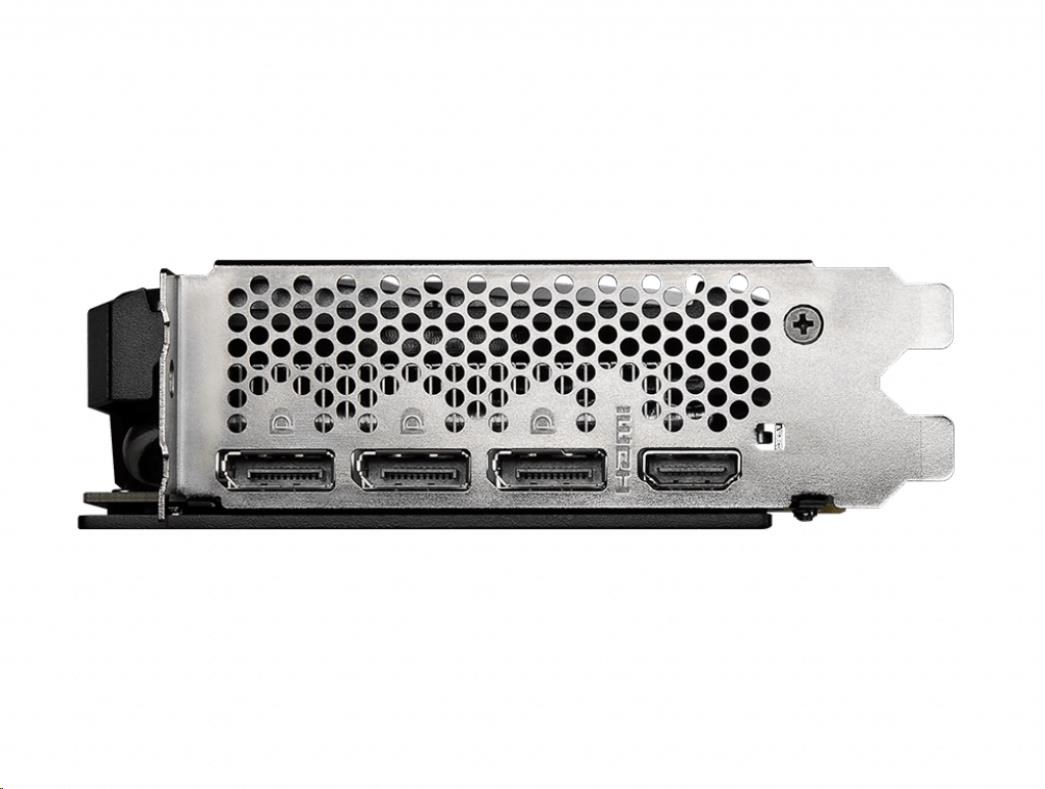

| Output | 3 x DisplayPort(v1.4a) / 1 x HDMI(Supports 4K@120Hz as specified in HDMI 2.1) |
| HDCP Support | Y |
| Power Consumption | 170W |
| Power Connectors | 1 x 8-pin |
| Recommended PSU | 550W |
| Card Dimension | 235 x 124 x 42 mm |
| Weight (Card / Package) | 675 g / 1030 g |
| DirectX Version Support | 12 API |
| OpenGL Version Support | 4.6 |
| Maximum Displays | 4 |
| VR Ready | Y |
| G-Sync® Technology | Y |
| Adaptive Vertical Sync | Y |
| Digital Maximum Resolution | 7680 x 4320 |
.
ParametryPorovnání
Výrobce procesoru GPU
nVidia
Chlazení grafické karty
Aktivní
Model grafické karty
NVIDIA RTX 3060
Počet USB-C (Virtual link)
0
Rozhraní sběrnice
PCI Express x16 4.0
Typ paměti
GDDR6
Počet VGA Portů
0
Funkce
G-Sync
Použití grafické karty
Herní
Kapacita paměti grafické katry (GB)
12
Počet DP portů
3
Počet DVI portů
0
Počet HDMI portů
1
Šířka sběrnice (bit)
192
Počet ventilátorů
2
