High-definition performance for personal computing.
Manhattan DisplayPort Cables deliver both high-definition digital audio and video signals between desktop or notebook computers and an output device. The 20-pin connector is small and compact but offers 10.8 Gbps bandwidth, Deep Color and 24-bit, 8-channel uncompressed audio capability. It's ideal for use with DisplayPort-equipped computers, flat-panel displays, slim-profile devices and many consumer electronics including Blu-ray players and game consoles. Full foil and braided shielding, molded boots with strain relief, protective PVC jackets and gold-plated connections ensure that Manhattan DisplayPort Cables provide maximum conductivity and clear, crisp signal transmissions with reduced EMI interference and distortion.

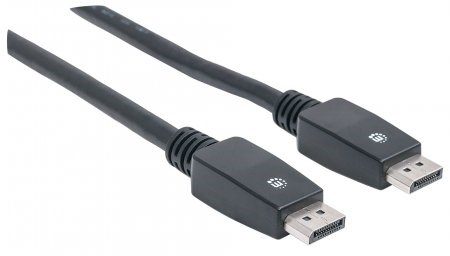

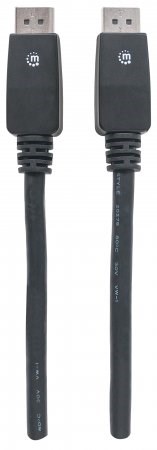

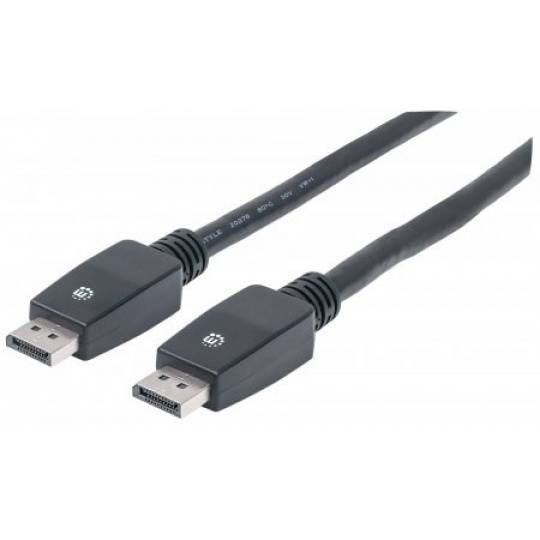

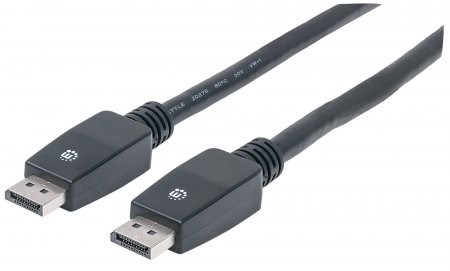

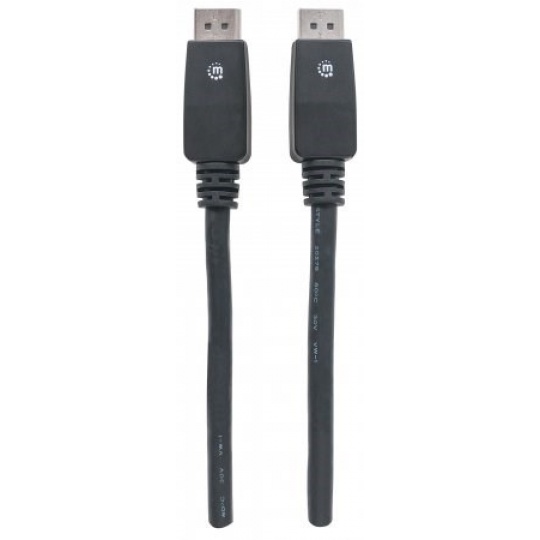

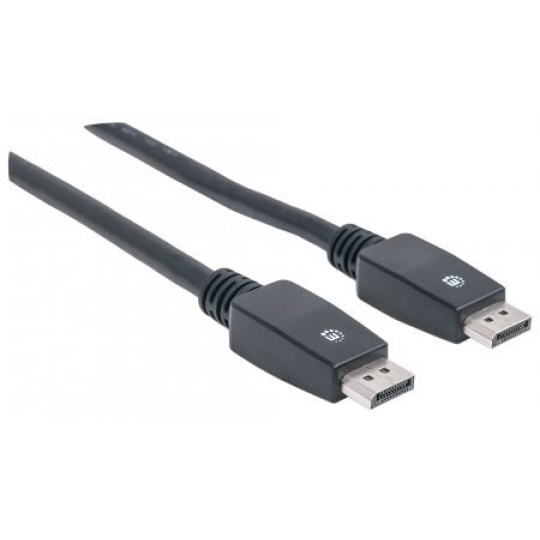

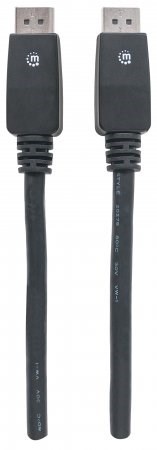

DisplayPort 20-pin male to DisplayPort 20-pin male with latching connections and strain relief boots Delivers high-bandwidth, bi-directional, 10.8 Gbps, digital audio/visual signals from source to display - up to 4Kx2K@60Hz 4K, UHD resolution supports video resolution four times 1080p; up to 1080p resolution in 3D and Deep Color Dolby and DTS-HD 2/5.1/7.1/8 uncompressed surround sound audio pass-through Fully shielded to reduce EMI and other interference sources Supports the HDCP and DPCP content protection standards Lifetime Warranty
Standards and Certifications UL 20276 DisplayPort 1.1 ISO 9002
General Bandwidth: 10.8 Gbps at 600 MHz Meets or exceeds existing DisplayPort standards Length: 10 m

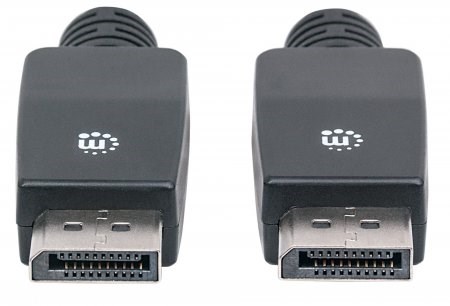

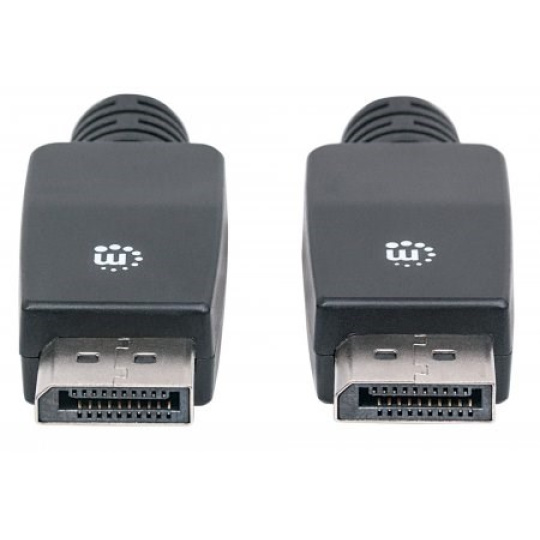

Connectors DisplayPort 20-pin male with latches (2) Gold plated Gold-plated contacts ABS boots, built-in PVC strain relief
Cable 26 AWG Shielding: aluminum and Mylar braid Withstanding voltage: 300 VDC Insulation resistance: 5 M? Contact resistance: 10 Ohms Current rating: 0.5 A DC Conductive resistance: 5 Ohms Thermal plastic casing
