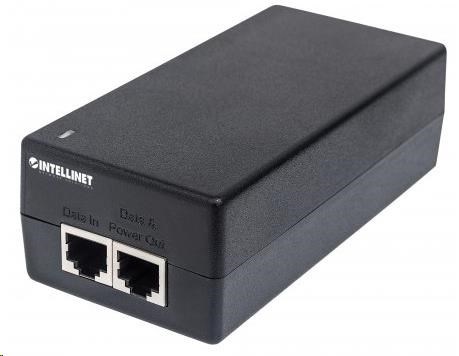

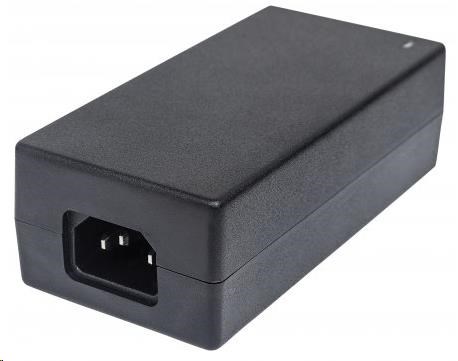

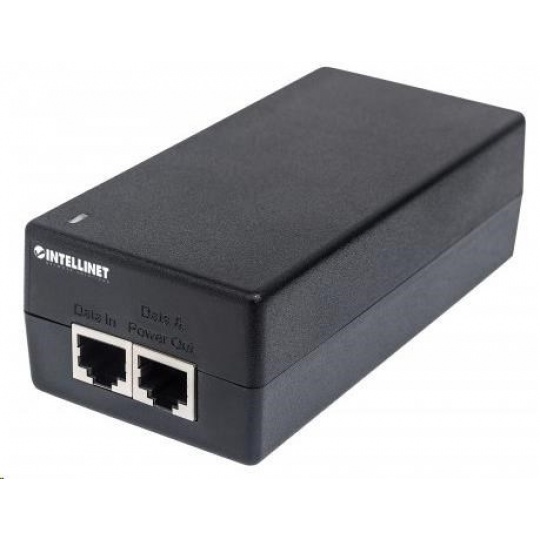

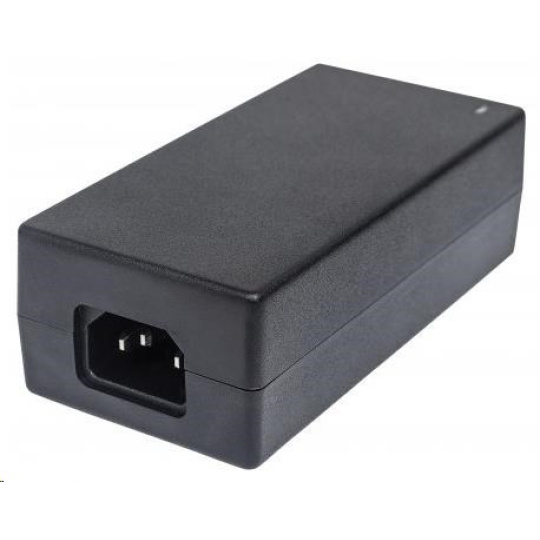

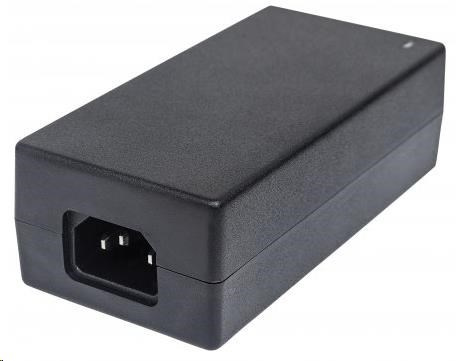

Intellinet Gigabit Ultra PoE+ Injector, 1x 60W port, IEEE 802.3bt, IEEE 802.3at/af

Standards •IEEE 802.3af (Power over Ethernet) •IEEE 802.3at (High-Power PoE+ Power over Ethernet) •IEEE 802.3bt (4 Pair Power over Ethernet, Level 3, 55 w) •IEEE 802.3 (10Base-T Ethernet) •IEEE 802.3ab (Gigabit Ethernet) •IEEE 802.3u (100Base-TX Fast Ethernet) •IEEE 802.3x (flow control for full duplex mode) General •Media support: - 100Base-TX Cat5 UTP/STP RJ45, 8 pin - 1000Base-T Cat5e UTP/STP RJ45, 8 pin •Ports: - One RJ45 10/100/1000 Mbps input port - One RJ45 10/100/1000 Mbps data and power output port •Protection functions: - Short circuit protection - Over current protection - Over voltage protection •PoE Pinout - Pin 1: DC (-) - Pin 2: DC (-) - Pin 3: DC (+) - Pin 4: DC (+) - Pin 5: DC (+) - Pin 6: DC (+) - Pin 7: DC (-) - Pin 8: DC (-) •Certifications: FCC Class B, CE LED •Dual-color power and PoE LED Power •Input: 100 – 240 V AC, 50 – 60 Hz •Output: 48 V DC, 1.25 A •Power consumption: 60 watts (maximum) Environmental •Plastic housing •Dimensions: 123 (L) x 61 (W) x 40 (H) [mm] / 4.84 (L) x 2.4 (W) x 1.57 (H) [in] •Weight: 0.29 kg (0.64 lbs.) •Operating temperature: 0 – 40°C (32 – 104°F) •Operating humidity: 10 – 90% RH, non-condensing •Storage temperature: -20 – 80°C (-4 – 176°F) Package Contents •Gigabit Ultra PoE Injector •Power cable.
