ASUS MB Sc AM4 PRIME B450-PLUS, AMD B450, 4xDDR4, VGA

Pro procesory:AMD; Socket (patice):Socket AM4; Chipset:AMD; Počet paměťových slotů:4; Technologie paměti RAM:DDR4; Formát základní desky:ATX; Podpora RAID:1, 10; PCI Express x16:2; PCI Express x1:3; USB 2:6; USB 3:7; USB C:1; SATA 3:6; PCI:0; M.2 slot:1; 3.5mm Jack; LAN:1Gbit/s; VGA:0; DVI:1; HDMI:1; DisplayPort:0; Bezdrátové připojení:bez; Led Header.... více
Běžná cena: 3 193  (-4%)
2 525.62 Kč bez DPH
Skladem 4 ks
3 056 Kč
ks
Vyberte si zvýhodněné balení
Množstevní slevy
Kód: 417792
EAN: 4718017075671
Záruka: 36 Měsíc(ů)
Výrobce: Asus
Popis a parametry

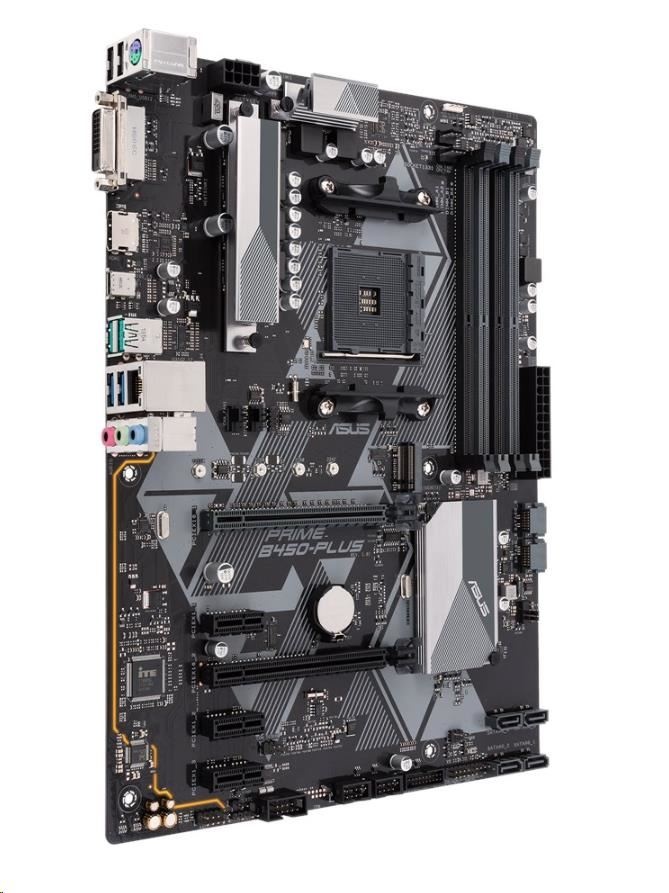

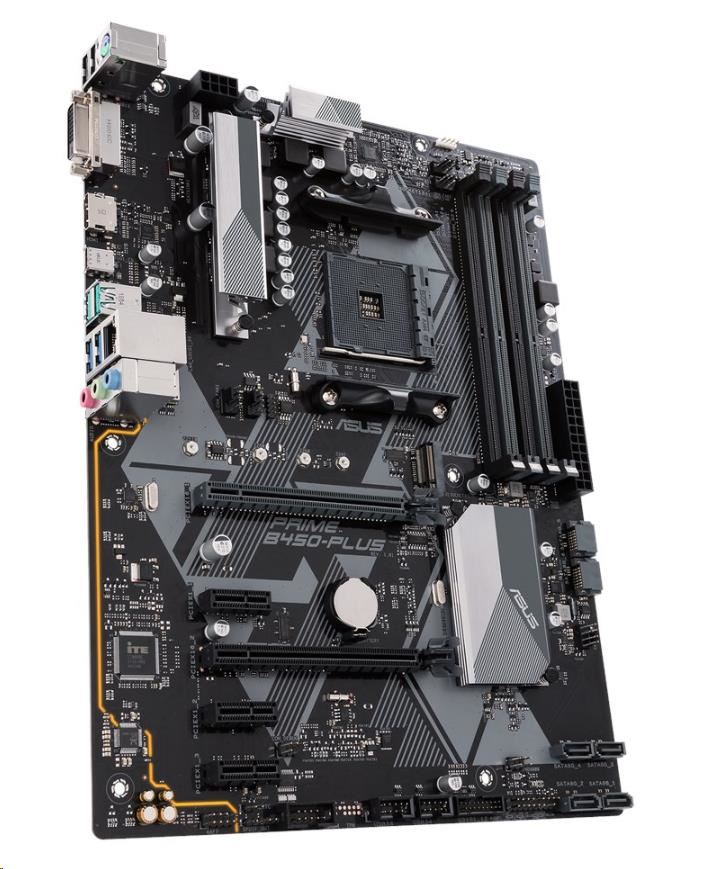

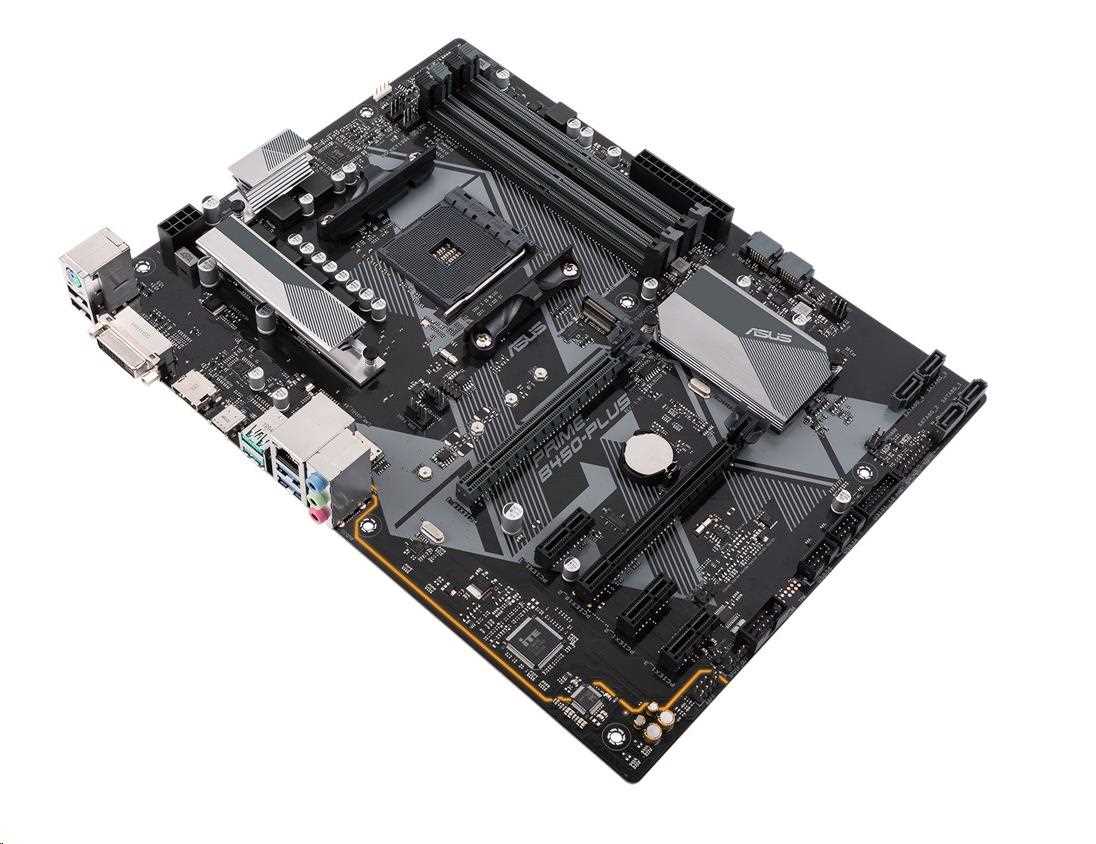

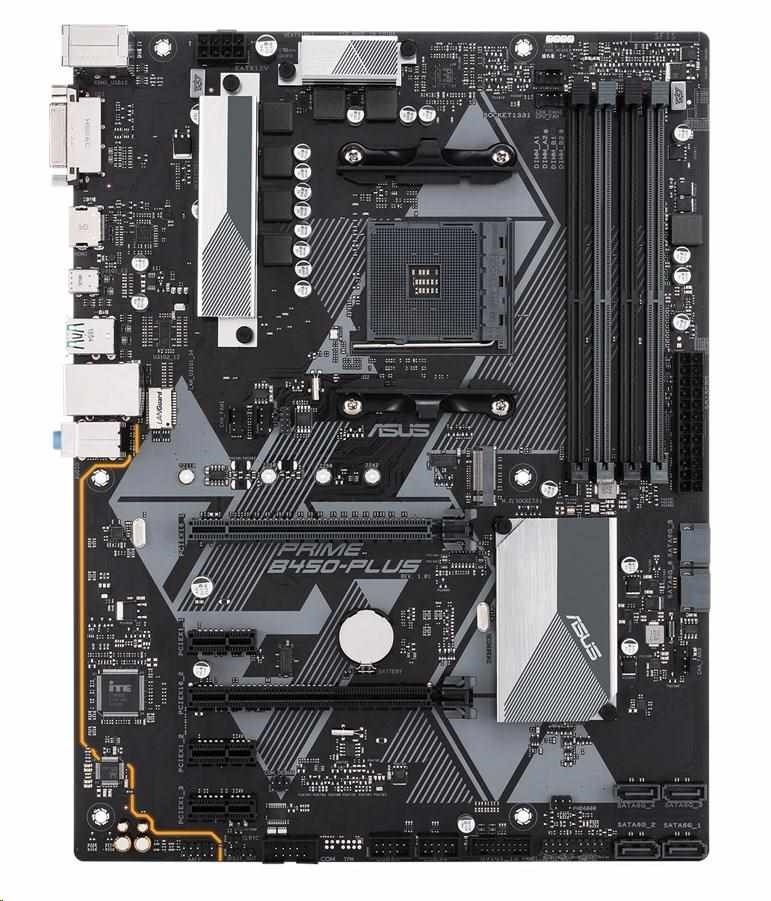

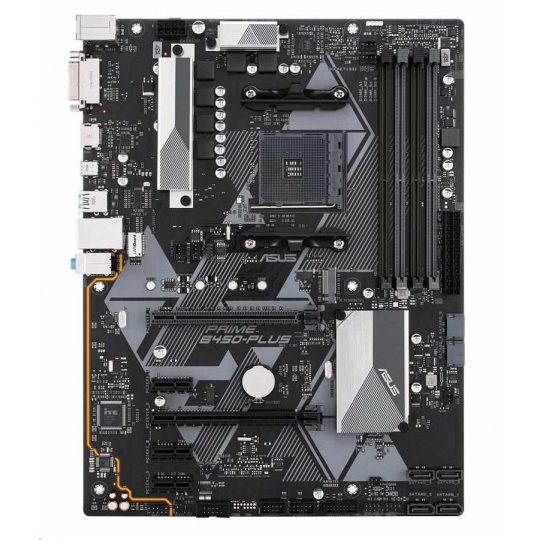

ASUS MB Sc AM4 PRIME B450-PLUS, AMD B450, 4xDDR4, VGA

PRIME B450-PLUS

AMD AM4 ATX motherboard with Aura Sync RGB header, DDR4 3200MHz, M.2, HDMI 2.0b, SATA 6Gbps and USB 3.1 Gen 2

  • Fan Xpert 4 Core: Comprehensive controls for fans and AIO pump, plus GPU-temperature sensing for cooler gaming
  • Ultrafast connectivity: Supreme flexibility with USB 3.1 Gen 2 and native M.2
  • ASUS Aura Sync header: Onboard connector for RGB LED strips, easily synced with an ever-growing portfolio of Aura Sync-capable hardware
  • 5X Protection III: Multiple hardware safeguards for all-around system protection


TECHNICAL SPECIFICATIONS

CPU AMD AM4 Socket AMD Ryzen™ 2nd Generation/Ryzen™ with Radeon™ Vega Graphics/Ryzen™ 1st Generation Processors
Supports CPU up to 8 cores
* Refer to www.asus.com for CPU support list
Chipset AMD B450
Memory AMD Ryzen™ 2nd Generation/ Ryzen™ with Radeon™ Vega Graphics/ Ryzen™ 1st Generation Processors
4 x DIMM, Max. 64GB, DDR4 3200(O.C.)/3000(O.C.)/2800(O.C.)/2666/2400/2133 MHz Un-buffered Memory
Dual Channel Memory Architecture
ECC Memory (ECC mode) support varies by CPU.
** Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists).
Graphic Integrated in the AMD Ryzen™ with Radeon™ Vega Graphics Processors
Multi-VGA output support : HDMI/DVI-D ports
- Supports HDMI 2.0b with maximum resolution of 4096 x 2160 @ 60 Hz
- Supports DVI-D with max. resolution 1920 x 1200 @ 60 Hz
Multi-GPU Support Supports AMD CrossFireX™ Technology
Expansion Slots AMD Ryzen™ 2nd Generation/ Ryzen™ 1st Generation Processors
1 x PCIe 3.0/2.0 x16 (x16 mode)
AMD Ryzen™ with Radeon™ Vega Graphics Processor
1 x PCIe 3.0/2.0 x16 (x8 mode)
AMD B450 chipset
1 x PCIe 2.0 x16 (max at x4 mode)
3 x PCIe 2.0 x1
Storage AMD Ryzen™ 2nd Generation/ Ryzen™ with Radeon™ Vega Graphics/ Ryzen™ 1st Generation Processors:
1 x M.2 Socket 3, with M key, type 2242/2260/2280/22110 storage devices support (SATA & PCIE 3.0 x 4 mode)
2 x SATA 6Gb/s port(s)
AMD B450 chipset:
4 x SATA 6Gb/s port(s)
Support Raid 0, 1, 10
LAN Realtek® RTL8111H
ASUS LAN Guard
Audio Realtek® ALC887-VD2 8-Channel High Definition Audio CODEC *
Audio Feature:
- LED-illuminated design - Brighten up your build with the gorgeous illuminated audio trace path.
- Audio Shielding: Ensures precision analog/digital separation and greatly reduced multi-lateral interference
- Dedicated audio PCB layers: Separate layers for left and right channels to guard the quality of the sensitive audio signals
- Premium Japanese-made audio capacitors: Provide warm, natural and immersive sound with exceptional clarity and fidelity
USB Ports AMD Ryzen™ 2nd Generation/ Ryzen™ with Radeon™ Vega Graphics/ Ryzen™ 1st Generation:
2 x USB 3.1 Gen 1 port(s) (2 at back panel, Type-A)
AMD Ryzen™ 2nd Generation/ Ryzen™ with Radeon™ Vega Graphics/ Ryzen™ 1st Generation:
1 x USB 3.1 Gen 1 port(s) (1 at back panel, USB Type-CTM)
AMD B450 chipset:
2 x USB 3.1 Gen 2 port(s) (2 at back panel, Type-A)
AMD B450 chipset:
2 x USB 3.1 Gen 1 port(s) (2 at mid-board)
AMD B450 chipset:
6 x USB 2.0 port(s) (2 at back panel, 4 at mid-board)
Special Features ASUS TUF PROTECTION
- ASUS SafeSlot Core: Fortified PCIe with solid soldering
- ASUS ESD Guard: Enhanced ESD protection
- ASUS Overvoltage Protection: World-class circuit-protecting power design
- ASUS Stainless-Steel Back I/O: 3X corrosion-resistance for greater durability!
- ASUS DIGI+ VRM: 6 Phase digital power design
ASUS Exclusive Features:
- AI Suite 3
- Ai Charger
- PC Cleaner
ASUS Quiet Thermal Solution:
- Stylish Fanless Design Heat-sink solution & MOS Heatsink
- ASUS Fan Xpert 4 Core
ASUS EZ DIY:
- ASUS CrashFree BIOS 3
- ASUS EZ Flash 3
- ASUS UEFI BIOS EZ Mode
ASUS Q-Design:
- ASUS Q-Slot
- ASUS Q-DIMM
Overclocking Protection:
- ASUS C.P.R.(CPU Parameter Recall)

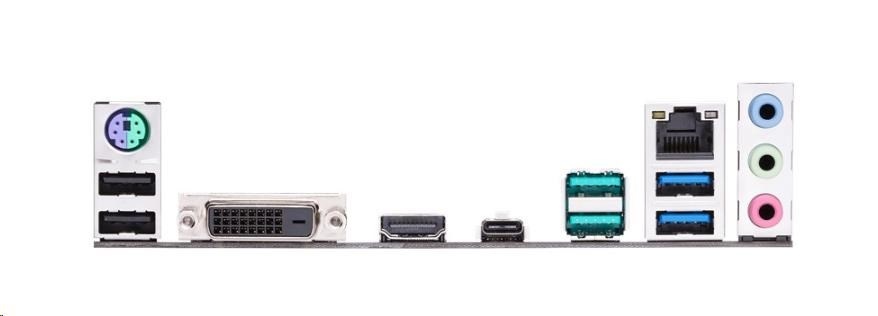

Back I/O Ports 1 x PS/2 keyboard/mouse combo port(s)
1 x DVI-D
1 x HDMI
1 x LAN (RJ45) port(s)
1 x 5Gb/s port(s) USB Type-CTM
2 x USB 3.1 Gen 2 (teal blue)Type-A,
2 x USB 3.1 Gen 1 (blue) Type-A,
2 x USB 2.0
3 x Audio jack(s)
Internal I/O Ports 1 x Aura RGB Strip Header
1 x USB 3.1 Gen 1(up to 5Gbps) connector(s) support(s) additional 2 USB 3.1 Gen 1 port(s) (19-pin)
2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s)
1 x M.2 Socket 3 with M key, type 2242/2260/2280/22110 storage devices support (SATA & PCIE 3.0 x 4 mode)
6 x SATA 6Gb/s connector(s)
1 x CPU Fan connector(s) (1 x 4 -pin)
3 x Chassis Fan connector(s) (3 x 4 -pin)
1 x AIO_PUMP connector (1 x 4 -pin)
1 x 24-pin EATX Power connector(s)
1 x 8-pin ATX 12V Power connector(s)
1 x Front panel audio connector(s) (AAFP)
1 x System panel(s)
1 x Clear CMOS jumper(s)
1 x COM port header

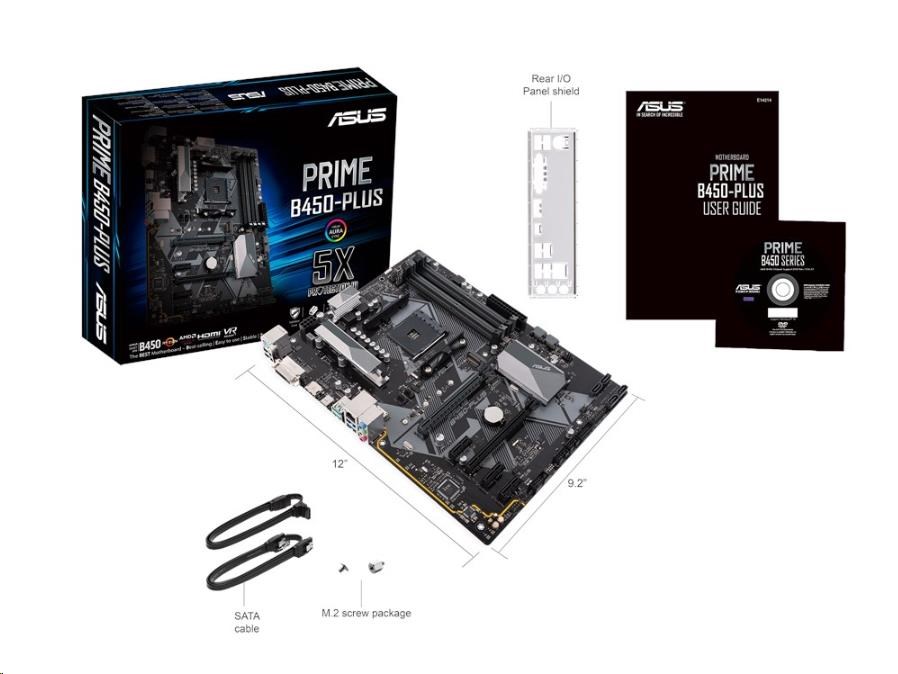

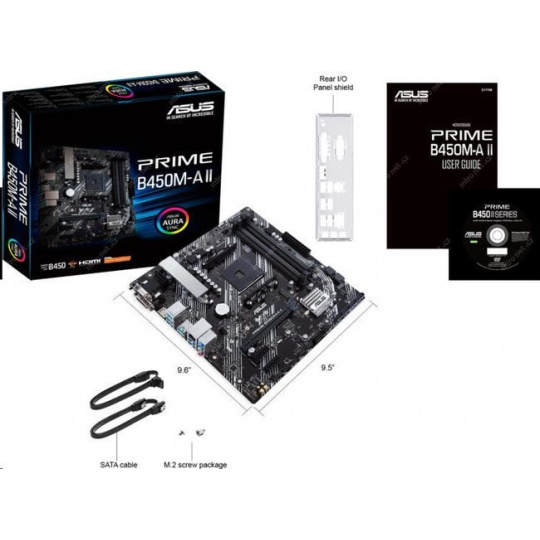

Accessories User's manual
I/O Shield
2 x SATA 6Gb/s cable(s)
1 x M.2 Screw Package
1 x Supporting DVD
BIOS 128 Mb Flash ROM, UEFI AMI BIOS, PnP, SM BIOS 3.1, ACPI 6.1, Multi-language BIOS, ASUS EZ Flash 3, ASUS CrashFree BIOS 3, F3 My Favorite, Last Modified log, F12 PrintScreen,F4 AURA ON/OFF, F9 Search and ASUS DRAM SPD (Serial Presence Detect) memory information
Manageability WOL by PME, PXE
Operating System Windows® 10 64-bit
Form Factor ATX Form Factor
12.0 x 9.2 inch (30.5 x 23.4 cm)
Note *Use a chassis with HD audio module in the front panel to support an 8-channel audio output.

.
Technologie paměti RAM
DDR4
Socket (patice)
Socket AM4
Integrovaná grafická karta
Ano (CPU)
Chipset
AMD
PCI express 16x
2
Integrovaná LAN karta
1
Podpora RAID
10
COM port
Ano
LPT port
Ne
Formát
ATX
3.5mm Jack
Ano
Bezdrátové připojení
bez
Pro procesory
AMD
Počet paměťových slotů
4
DisplayPort
0
TPM
Ne
USB 2
6
USB 3
7
PCI
1
M.2 slot
1
SATA 3
6
VGA
1
DVI
1
HDMI
1
Led Header
Ano
PCI Express x1
3
USB C
1
LAN
1Gbit/s
