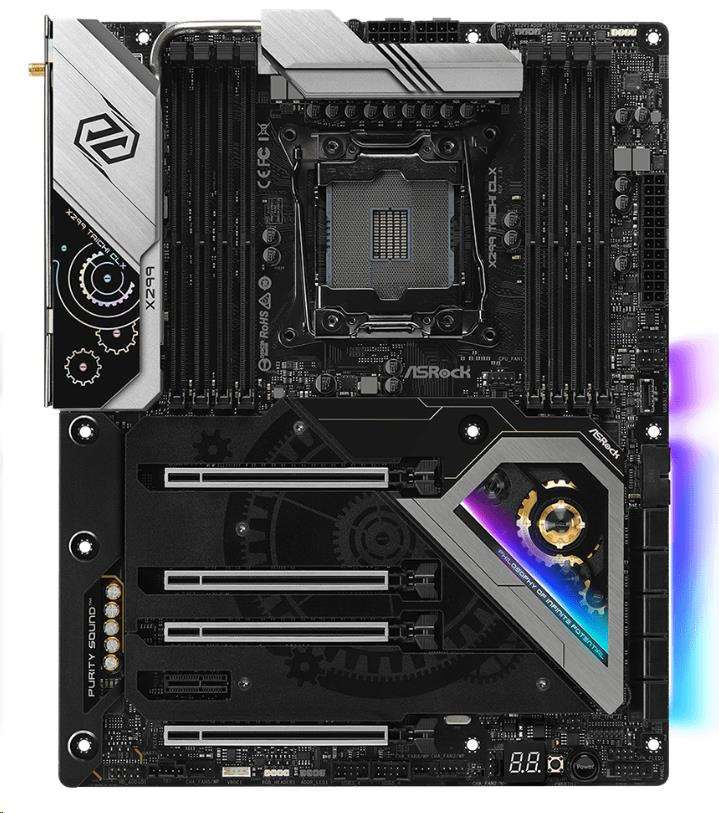

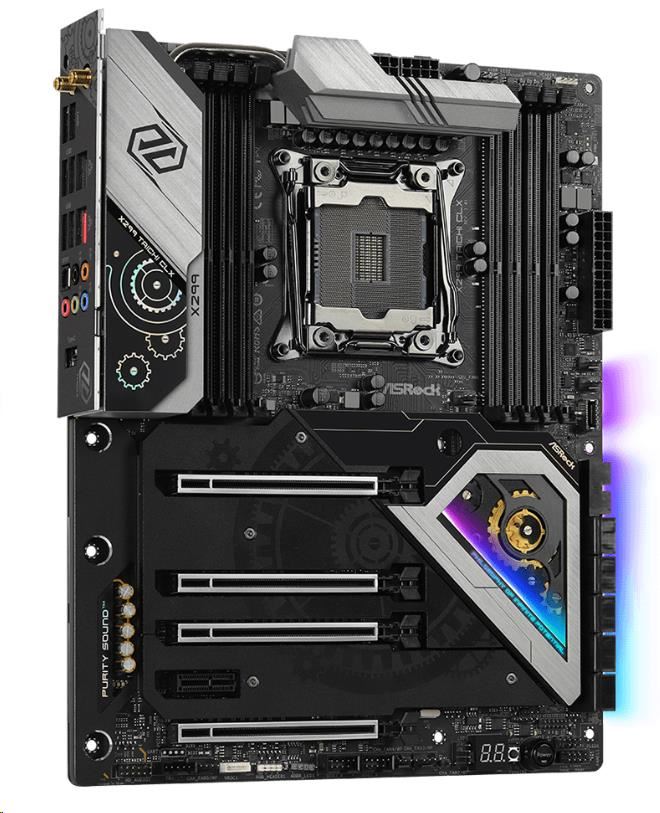

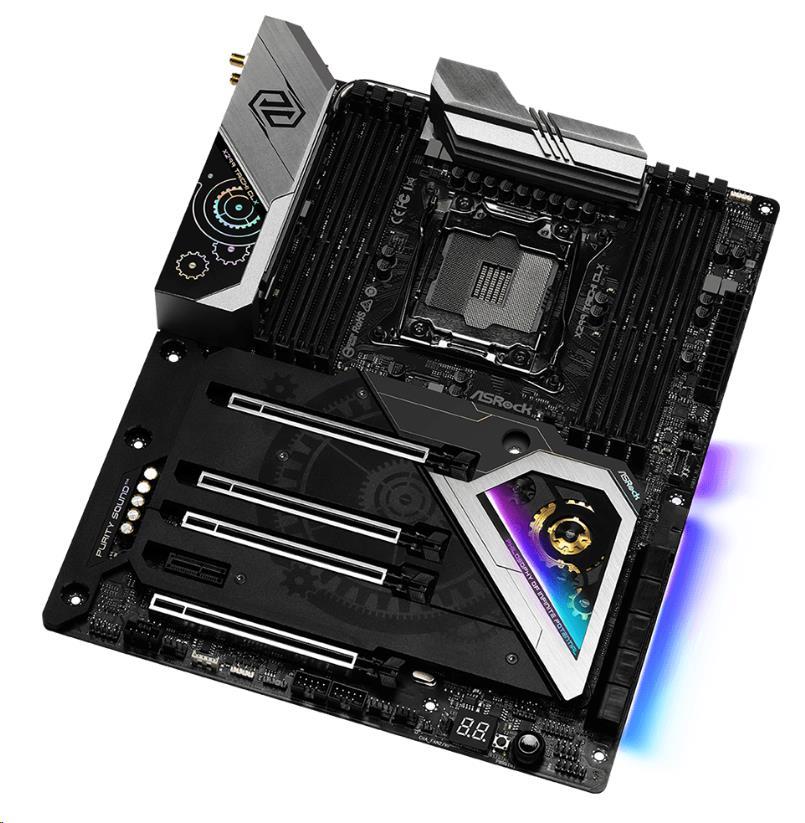

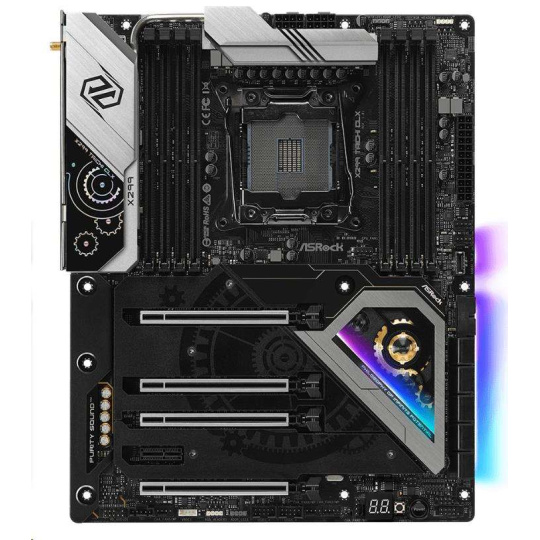

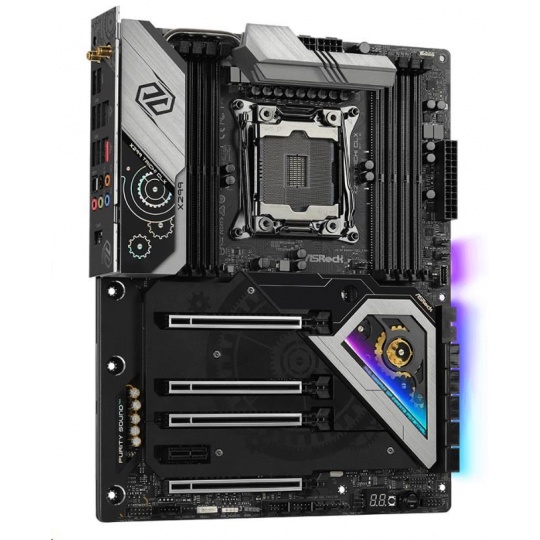

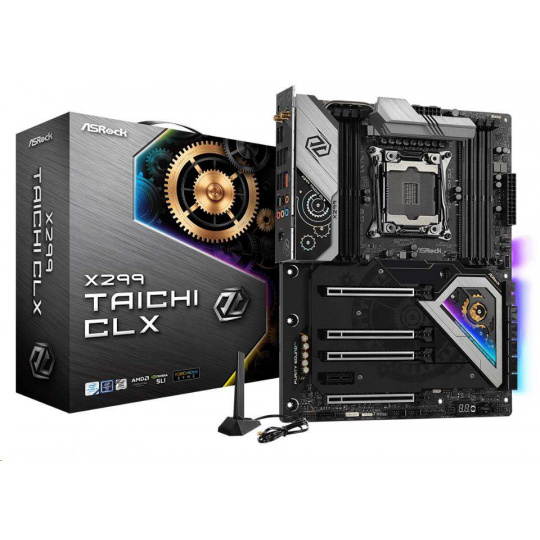

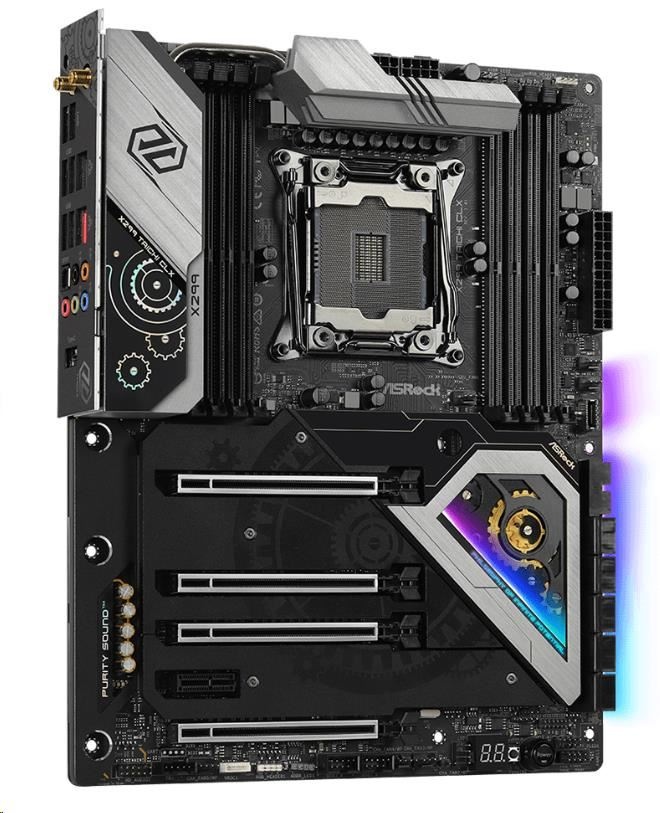

ASRock MB Sc LGA2066 X299 Taichi CLX,Intel X299, 8xDDR4, VGA

Name: ASRock MB Sc LGA2066 X299 Taichi CLX,Intel X299, 8xDDR4, VGA
Brand: ASRock
SKU: 380582
Price: 6190 CZK
Availability: OutOfStock

zdarma

-5%

ASRock MB Sc LGA2066 X299 Taichi CLX,Intel X299, 8xDDR4, VGA

Kód: 380582

EAN: 4717677339765

Záruka: 36 Měsíc(ů)

Výrobce: ASRock

Do oblíbených Porovnání Dotaz prodejci Hlídání

Popis a parametry

ASRock MB Sc LGA2066 X299 Taichi CLX,Intel X299, 8xDDR4, VGA

ParametryPorovnání

Technologie paměti RAM

DDR4

Socket (patice)

Socket 2066

Chipset

Intel

PCI Express x16

Více než 1

Podpora RAID

Formát základní desky

ATX

3.5mm Jack

Ano

ASRock MB Sc LGA2066 X299 Taichi CLX,Intel X299, 8xDDR4, VGA

Unique Feature	ASRock USB 3.2 Gen2 - ASRock Front Panel Type C USB 3.2 Gen2 Header (10 Gb/s) - ASRock Type C USB 3.2 Gen2x2 Port (20 Gb/s) ASRock Super Alloy - XXL Aluminum Alloy Heatsink - Premium 60A Power Choke - Dr. MOS - Nichicon 12K Black Caps (100% Japan made high quality conductive polymer capacitors) - Matte Black PCB - High Density Glass Fabric PCB - 8 Layer PCB - 2oz Copper PCB 2.5G LAN Intel® 802.11ax WiFi ASRock Steel Slots ASRock Full Coverage M.2 Heatsink ASRock Ultra M.2 (PCIe Gen3 x4 & SATA3) ASRock Ultra USB Power ASRock Full Spike Protection (for all USB, Audio, LAN Ports) ASRock Live Update & APP Shop
CPU	- Supports Intel® Core™ X-Series Processor Family for the LGA 2066 Socket (Cascade Lake-X, Skylake X Refresh and Skylake X) - Digi Power design - 13 Power Phase design - Supports Intel® Turbo Boost Max Technology 3.0 - Supports ASRock Hyper BCLK Engine III
Chipset	- Intel® X299
Memory	- Quad Channel DDR4 Memory Technology - 8 x DDR4 DIMM Slots - Supports DDR4 4200+(OC)* / 4000(OC) / 3800(OC) / 3733(OC) / 3600(OC) / 3200(OC) / 2933(OC) / 2800(OC) / 2666 / 2400 / 2133 non-ECC, un-buffered memory - Max. capacity of system memory: 256GB - Supports Intel® Extreme Memory Profile (XMP) 2.0 - 15µ Gold Contact in DIMM Slots *The maximum memory frequency supported may vary by processor type.
Graphics	- n/a
Slots	- 4 x PCI Express 3.0 x16 Slots* - 1 x PCI Express 3.0 x1 Slot - Supports AMD 3-Way CrossFireX™ and CrossFireX™ - Supports NVIDIA® 3-Way SLI™ and SLI™ - 1 x Vertical M.2 Socket (Key E) with the bundled WiFi-802.11ax module (on the rear I/O) - 15µ Gold Contact in VGA PCIe Slot (PCIE1 and PCIE3) If you install CPU with 48 lanes, PCIE1/PCIE2/PCIE3/PCIE5 will run at x16/x8/x16/x8. If a M.2 PCI Express module is installed on M2_1 or M2_2, PCIE2 will downgrade to x4 mode. If M.2 PCI Express modules are installed on M2_1 and M2_2, PCIE2 will be disabled. If you install CPU with 44 lanes, PCIE1/PCIE2/PCIE3/PCIE5 will run at x16/x4/x16/x8. If a M.2 PCI Express module is installed on M2_1, PCIE2 will be disabled. If you install CPU with 28 lanes, PCIE1/PCIE2/PCIE3/PCIE5 will run at x16/x4/x8/x0. If a M.2 PCI Express module is installed on M2_1, PCIE2 will be disabled. Supports NVMe SSD as boot disks *3-Way CrossFireX™ and 3-Way SLI™ are only supported with CPU with 48 lanes or 44 lanes.
Storage	- 8 x SATA3 6.0 Gb/s Connectors, support RAID (RAID 0, RAID 1, RAID 5, RAID 10, Intel® Rapid Storage Technology 17 and Intel® Smart Response Technology), NCQ, AHCI and Hot Plug* - 2 x SATA3 6.0 Gb/s Connectors by ASMedia ASM1061, support NCQ, AHCI and Hot Plug - 2 x Ultra M.2 Sockets (M2_1 and M2_2), support M Key type 2242/2260/2280 M.2 PCI Express module up to Gen3 x4 (32 Gb/s) - 1 x Ultra M.2 Socket (M2_3), supports M Key type 2242/2260/2280/22110 M.2 SATA3 6.0 Gb/s module and M.2 PCI Express module up to Gen3 x4 (32 Gb/s) If M2_3 is occupied by a SATA-type M.2 device, SATA3_7 will be disabled. *M2_2 is only supported with CPU with 48 lanes. Supports Intel® Optane™ Technology Supports PCIe RAID Supports NVMe SSD as boot disks
LAN	1 x 2.5 Gigabit LAN 10/100/1000/2500 Mb/s (Dragon RTL8125AG): - Supports Dragon 2.5G LAN Software - Smart Auto Adjust Bandwidth Control - Visual User Friendly UI - Visual Network Usage Statistics - Optimized Default Setting for Game, Browser, and Streaming Modes - User Customized Priority Control - Supports Wake-On-LAN - Supports Lightning/ESD Protection - Supports Energy Efficient Ethernet 802.3az - Supports PXE 1 x Gigabit LAN 10/100/1000 Mb/s (Intel® I219V): - Supports Wake-On-LAN - Supports Lightning/ESD Protection - Supports Energy Efficient Ethernet 802.3az - Supports PXE
Wireless LAN	- Intel® 802.11ax WiFi Module - Supports IEEE 802.11a/b/g/n/ax - Supports Dual-Band (2.4/5 GHz) - Supports high speed wireless connections up to 2.4Gbps - 2 antennas to support 2 (Transmit) x 2 (Receive) diversity technology - Supports Bluetooth 5.0 + High speed class II - Supports MU-MIMO
Connector	- 1 x Virtual RAID On CPU Header - 1 x SPI TPM Header - 1 x Power LED and Speaker Header - 2 x RGB LED Headers* - 2 x Addressable LED Headers - 1 x CPU Fan Connector (4-pin)* - 1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)** - 5 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control)* - 1 x 24 pin ATX Power Connector (Hi-Density Power Connector) - 2 x 8 pin 12V Power Connectors (Hi-Density Power Connector) - 1 x Front Panel Audio Connector (15µ Gold Audio Connector) - 1 x Thunderbolt™ AIC Connector (5-pin)**** - 2 x USB 2.0 Headers (Support 4 USB 2.0 ports) (Supports ESD Protection) - 1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports) (Supports ESD Protection) - 1 x Front Panel Type C USB 3.2 Gen2 Header (ASMedia ASM3142) - 1 x Dr. Debug with LED - 1 x Power Button with LED - 1 x Reset Button Supports in total up to 12V/3A, 36W LED Strip Support in total up to 5V/3A, 15W LED Strip The CPU Fan Connector supports the CPU fan of maximum 1A (12W) fan power. The CPU/Water Pump Fan supports the water cooler fan of maximum 2A (24W) fan power. *The Chassis/Water Pump Fan supports the water cooler fan of maximum 2A (24W) fan power. CPU_FAN2/WP, CHA_FAN1~5/WP can auto detect if 3-pin or 4-pin fan is in use. ****The Thunderbolt™ AIC card can be installed in the enabled PCIe slot (depending on CPU type).
Audio	- 7.1 CH HD Audio with Content Protection (Realtek ALC1220 Audio Codec) - Premium Blu-ray Audio support - Supports Surge Protection - Supports Purity Sound™ 4 - Nichicon Fine Gold Series Audio Caps - 120dB SNR DAC with Differential Amplifier - NE5532 Premium Headset Amplifier for Front Panel Audio Connector (Supports up to 600 Ohm headsets) - Pure Power-In - Direct Drive Technology - PCB isolate shielding - Impedance Sensing on Rear Out port - Individual PCB Layers for R/L Audio Channel - Gold Audio Jacks - 15µ Gold Audio Connector - Supports DTS Connect

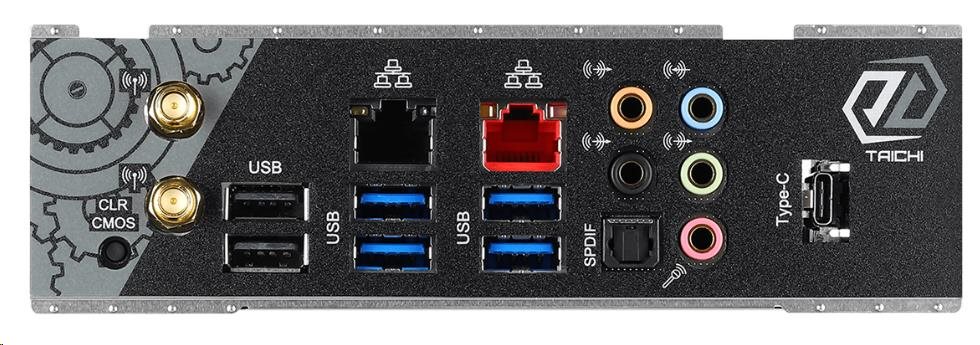

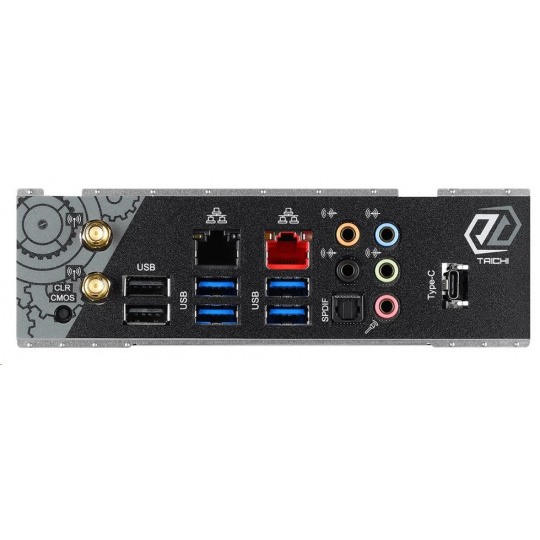

Rear panel I/O	- 2 x Antenna Ports - 1 x Optical SPDIF Out Port - 2 x USB 2.0 Ports (Supports ESD Protection) - 1 x USB 3.2 Gen2x2 Type-C Port (20 Gb/s) (ASMedia ASM3242) (Supports ESD Protection) - 4 x USB 3.2 Gen1 Ports (Supports ESD Protection) - 2 x RJ-45 LAN Ports with LED (ACT/LINK LED and SPEED LED) - 1 x Clear CMOS Button - HD Audio Jacks: Rear Speaker / Central / Bass / Line in / Front Speaker / Microphone (Gold Audio Jacks) *Ultra USB Power is supported on USB3_3_4 ports. ACPI wake-up function is not supported on USB3_3_4 ports.
Software and UEFI	Software - Dragon 2.5G LAN Software - ASRock Motherboard Utility (A-Tuning) - ASRock Polychrome SYNC* UEFI - ASRock EZ Mode - ASRock Full HD UEFI - ASRock My Favorites in UEFI - ASRock Instant Flash - ASRock Internet Flash - ASRock Easy RAID Installer *These utilities can be downloaded from ASRock Live Update & APP Shop.
Support CD	- Drivers, Utilities, AntiVirus Software (Trial Version), Google Chrome Browser and Toolbar
BIOS	- 2 x 128Mb AMI UEFI Legal BIOS with multilingual GUI support (1 x Main BIOS and 1 x Backup BIOS) - Supports Secure Backup UEFI Technology - ACPI 6.1 Compliant wake up events - SMBIOS 3.0 Support - CPU, DRAM, VPPM, VTTM, PCH 1.0V, VCCMPHY, VCCIO, VCCSA, CPUPLL, CLK VDD Voltage Multi-adjustment

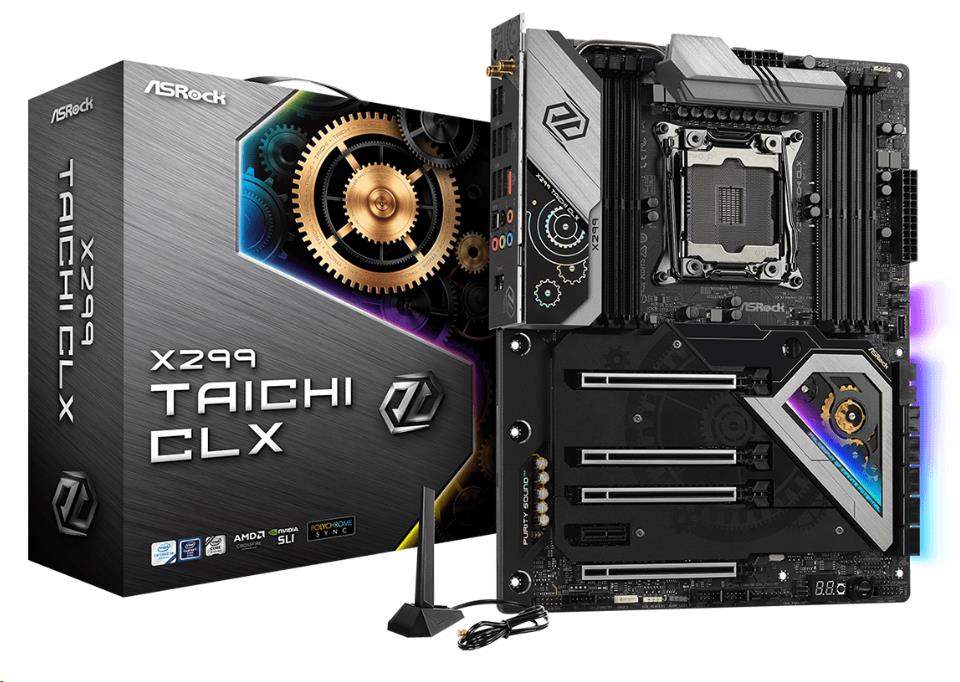

Accessories	- Quick Installation Guide, Support CD - 4 x SATA Data Cables - 1 x ASRock SLI_HB_Bridge_2S Card - 1 x ASRock WiFi 2.4/5 GHz Antenna - 1 x ASRock Screwdriver - 3 x Screws for M.2 Sockets - 3 x Standoffs for M.2 Sockets
Hardware Monitor	- Temperature Sensing: CPU, CPU/Water Pump, Chassis/Water Pump Fans - Fan Tachometer: CPU, CPU/Water Pump, Chassis/Water Pump Fans - Quiet Fan (Auto adjust chassis fan speed by CPU temperature): CPU, CPU/Water Pump, Chassis/Water Pump Fans - Fan Multi-Speed Control: CPU, CPU/Water Pump, Chassis/Water Pump Fans - Voltage monitoring: +12V, +5V, +3.3V, CPU Vcore, DRAM, PCH 1.0V, VCCIO, VCCSA
Operating System	- Microsoft® Windows® 10 64-bit
Form Factor	- ATX Form Factor: 12.0-in x 9.6-in, 30.5 cm x 24.4 cm - 8 Layer PCB - 2oz Copper PCB
Certifications	- FCC, CE - ErP/EuP ready (ErP/EuP ready power supply is required)
