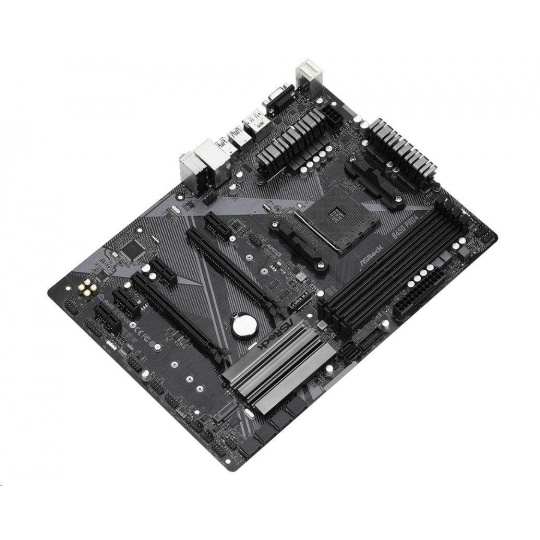

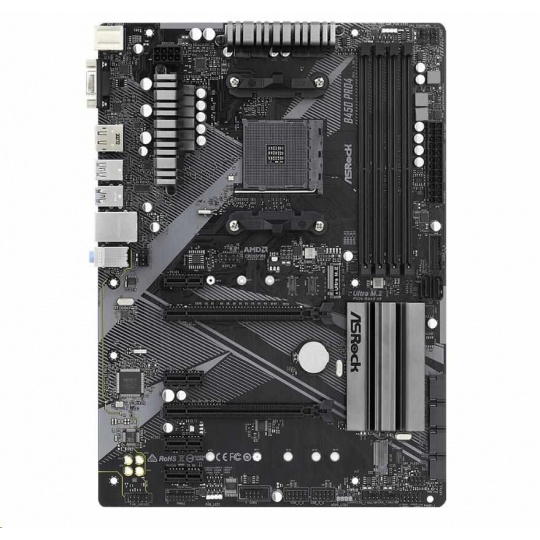

ASRock MB Sc AM4 B450 PRO4 R2.0, AMD B450, 4xDDR4, 1xDP, 1xHDMI, VGA

Formát základní desky:ATX; Chipset:AMD B450, AMD; Socket (patice):Socket AM4; Pro procesory:AMD; Technologie paměti RAM:DDR4; Počet paměťových slotů:4; M.2 slot:2; SATA 3:6; Podpora RAID:1, 10; PCI Express x16:2; PCI Express x1:4; PCI:0; LAN:1Gbit/s; Bezdrátové připojení:bez; DisplayPort:1; HDMI:1; VGA:1; DVI:0; USB 2:6; USB 3:8; USB C:1; COM port.... více
Běžná cena: 2 615  (-5%)
2 043.8 Kč bez DPH
Na dotaz
2 473 Kč
ks
Vyberte si zvýhodněné balení
Množstevní slevy
Kód: 380675
EAN: 4710483932786
Záruka: 24 Měsíc(ů)
Výrobce: ASRock
Popis a parametry

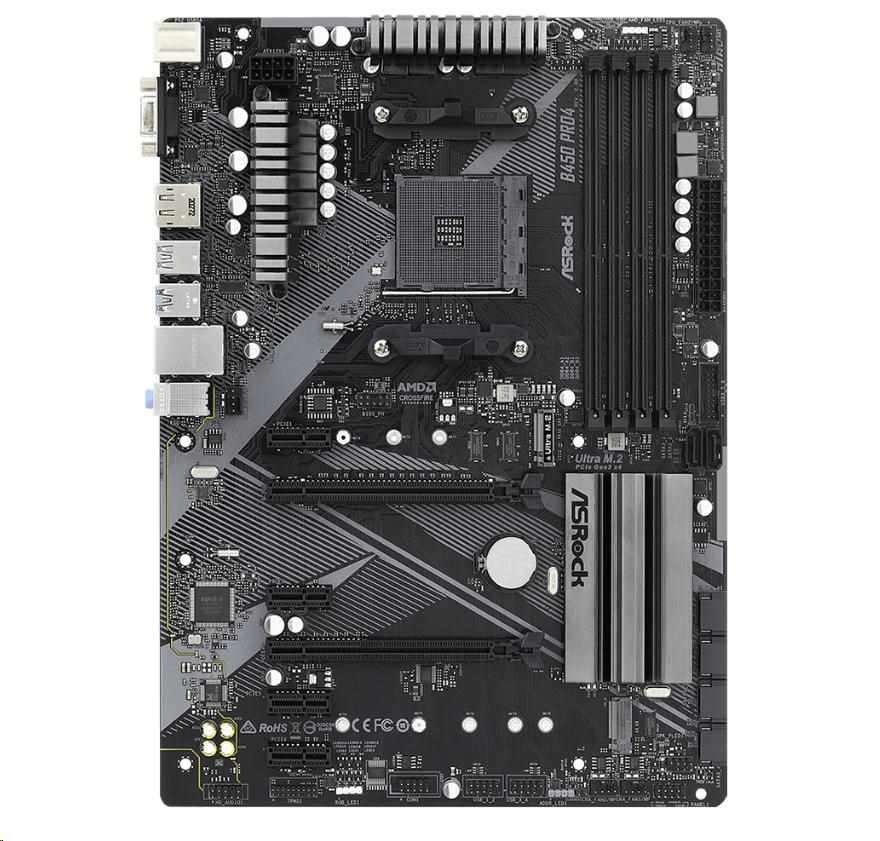

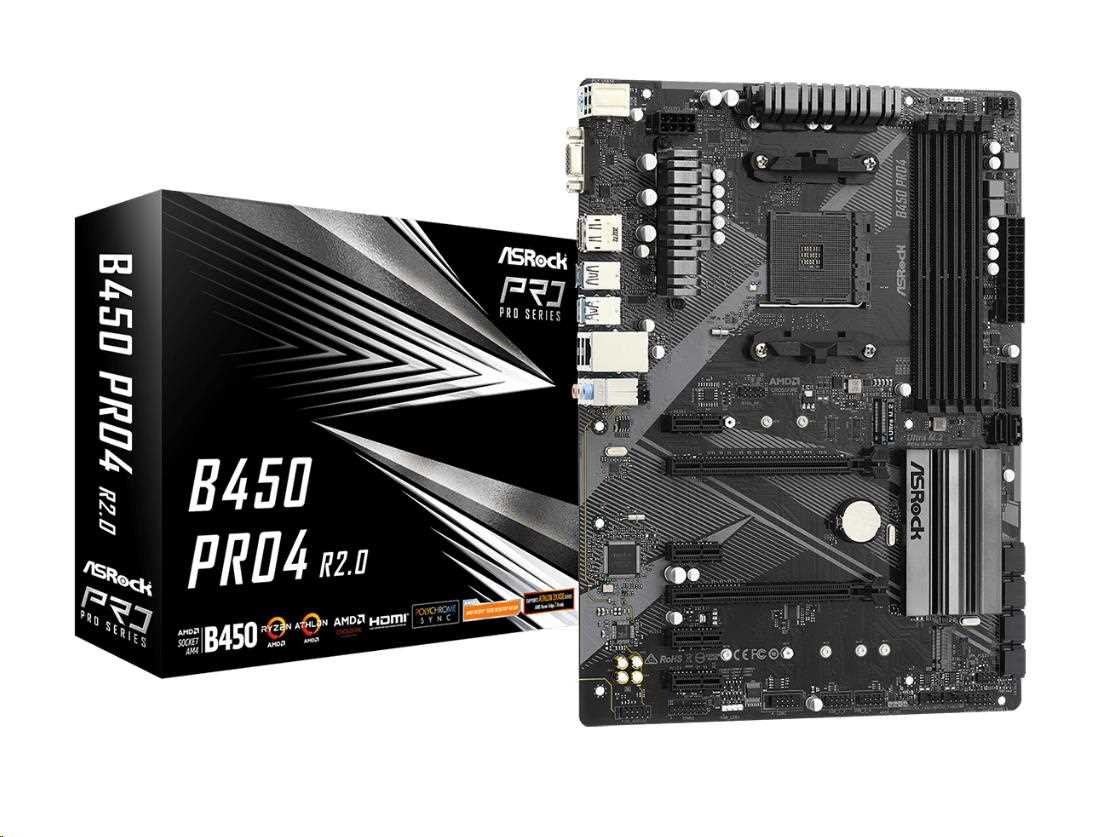

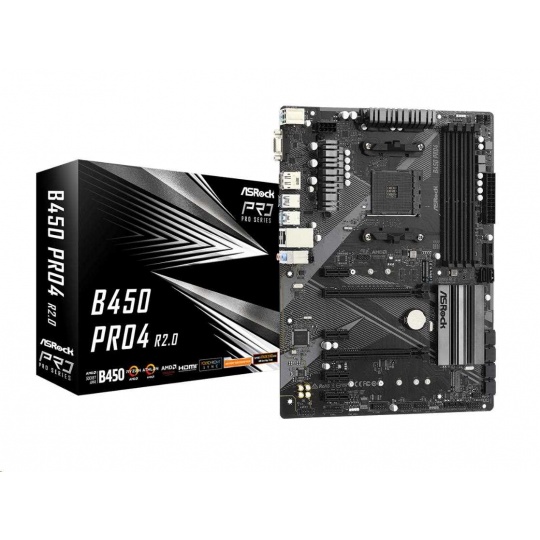

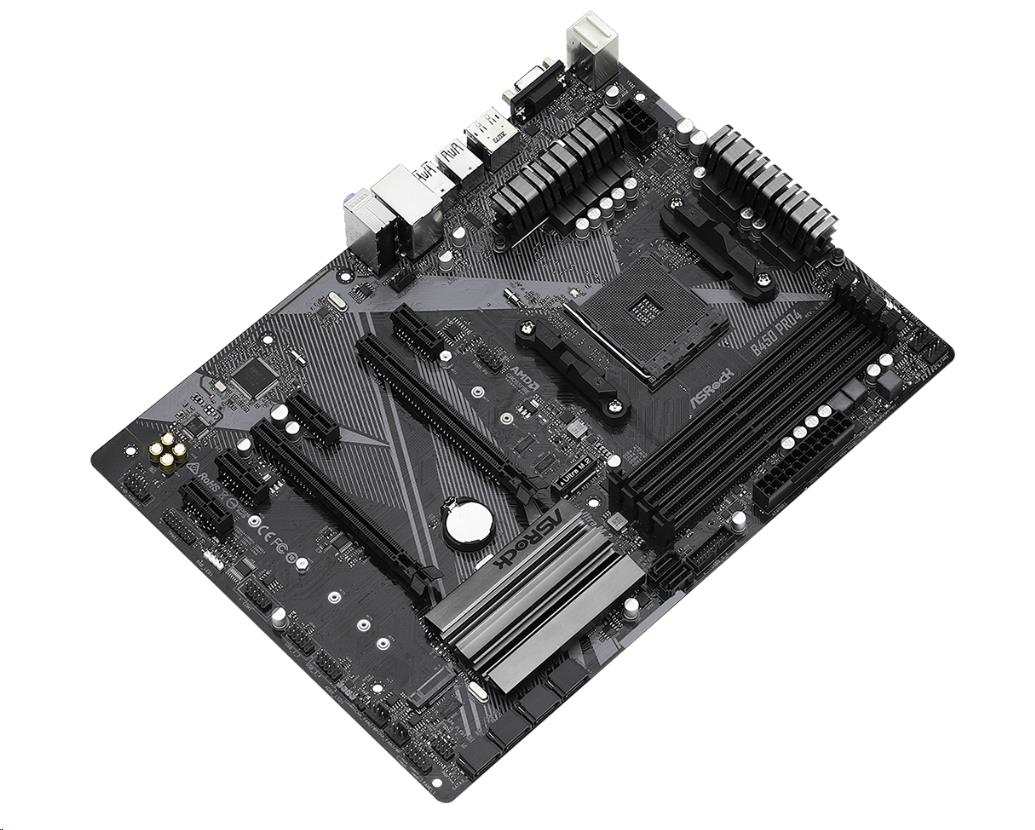

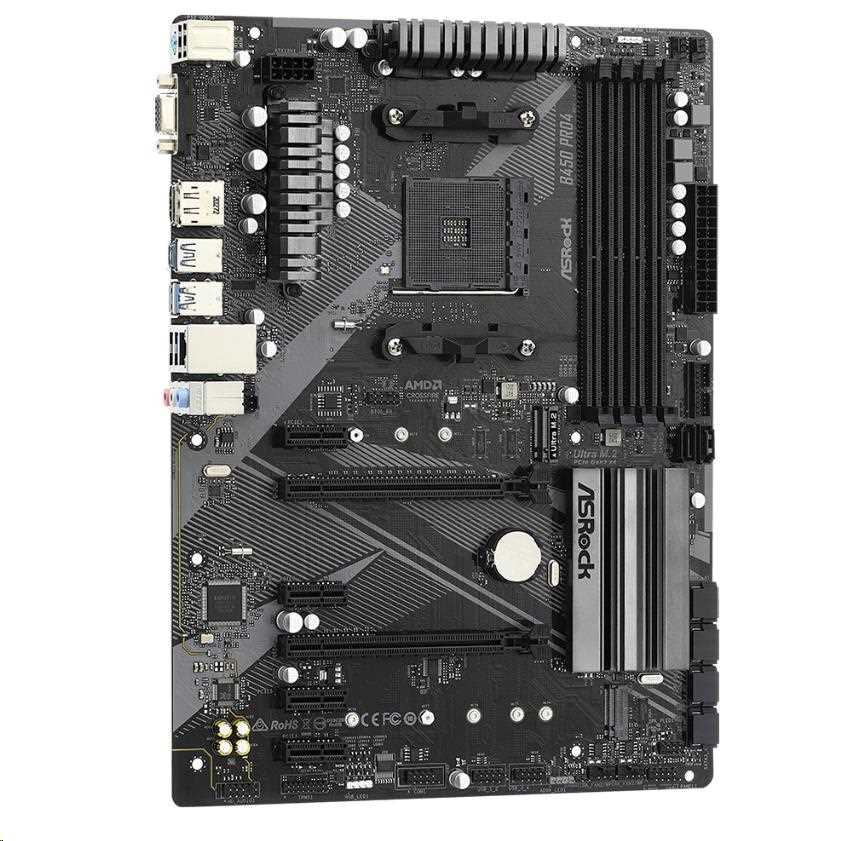

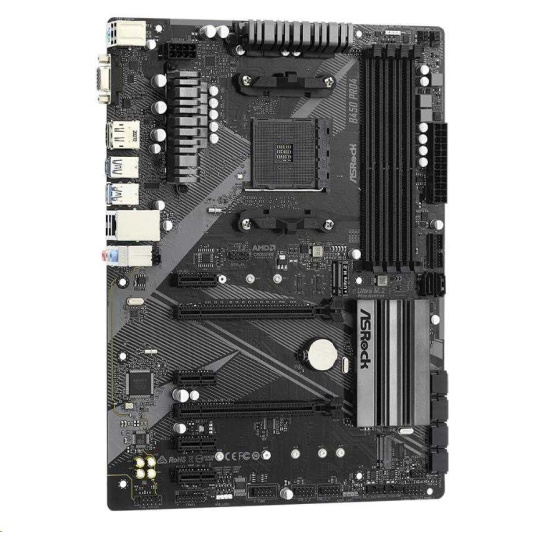

ASRock MB Sc AM4 B450 PRO4 R2.0, AMD B450, 4xDDR4, 1xDP, 1xHDMI, VGA

B450 Pro4 R2.0

  • Supports AMD AM4 Socket Ryzen™ 2000, 3000 and 5000 Series Desktop Processors
  • Supports DDR4 3200+ (OC)
  • 2 PCIe 3.0 x16, 4 PCIe 2.0 x1
  • AMD Quad CrossFireX™
  • Graphics Output: HDMI, Display Port, D-Sub
  • 7.1 CH HD Audio (Realtek ALC892/897 Audio Codec)
  • 6 SATA3, 1 Ultra M.2 (PCIe Gen3 x4), 1 M.2 (PCIe Gen3 x2 & SATA3)
  • 2 USB 3.2 Gen2 (Rear Type A+C)
  • 6 USB 3.2 Gen1 (2 Front, 4 Rear)
  • Realtek Gigabit LAN

Unique Feature

ASRock USB 3.2 Gen2
- ASRock USB 3.2 Gen2 Type-A Port (10 Gb/s)
- ASRock USB 3.2 Gen2 Type-C Port (10 Gb/s)
ASRock Super Alloy
- Premium Power Choke
- Sapphire Black PCB
- High Density Glass Fabric PCB
- 2oz Copper PCB
ASRock Ultra M.2 (PCIe Gen3 x4)
ASRock Full Spike Protection (for all USB, Audio, LAN Ports)
ASRock Live Update & APP Shop

CPU

- Supports AMD AM4 Socket Ryzen™ 2000, 3000 and 5000 Series Desktop Processors
- Digi Power design
- 10 Power Phase design

Chipset

- AMD Promontory B450

Memory

- Dual Channel DDR4 Memory Technology
- 4 x DDR4 DIMM Slots
- AMD Ryzen series CPUs (Matisse) support DDR4 3200 / 2933 / 2667 / 2400 / 2133 ECC & non-ECC, un-buffered memory*
- AMD Ryzen series CPUs (Pinnacle Ridge) support DDR4 3200+(OC) / 2933(OC) / 2667 / 2400 / 2133 ECC & non-ECC, un-buffered memory*
- AMD Ryzen series CPUs (Picasso) support DDR4 2933 / 2667 / 2400 / 2133 non-ECC, un-buffered memory*
- AMD Ryzen series CPUs (Summit Ridge) support DDR4 3200+(OC) / 2933(OC) / 2667 / 2400 / 2133 ECC & non-ECC, un-buffered memory*
- AMD Ryzen series CPUs (Raven Ridge) support DDR4 3200+(OC) / 2933 / 2667 / 2400 / 2133 non-ECC, un-buffered memory

- Max. capacity of system memory: 128GB*
- Supports Extreme Memory Profile (XMP) memory modules
- 15µ Gold Contact in DIMM Slots

*For Ryzen Series CPUs (Picasso and Raven Ridge), ECC is only supported with PRO CPUs.
Please refer to below table for AMD non-XMP memory frequency support.

**Due to the operating system limitation, the actual memory size may be less than 4GB for the reservation for system usage under Windows® 32-bit OS. For Windows® 64-bit OS with 64-bit CPU, there is no such limitation.

BIOS

- 128Mb AMI UEFI Legal BIOS with multilingual GUI support
- Supports "Plug and Play"
- ACPI 5.1 compliance wake up events
- Supports jumperfree
- SMBIOS 2.3 support
- DRAM Voltage multi-adjustment

Graphics

- Integrated AMD Radeon™ Vega Series Graphics in Ryzen Series APU*
- DirectX 12, Pixel Shader 5.0
- Shared memory default 2GB. Max Shared memory supports up to 16GB.**
- Three graphics output options: D-Sub, HDMI and DisplayPort 1.2
- Supports Triple Monitor
- Supports HDMI 1.4 with max. resolution up to 4K x 2K (4096x2160) @ 24Hz / (3840x2160) @ 30Hz
- Supports DisplayPort 1.2 with max. resolution up to 4K x 2K (4096x2160) @ 60Hz
- Supports D-Sub with max. resolution up to 1920x1200 @ 60Hz
- Supports Auto Lip Sync, Deep Color (12bpc), xvYCC and HBR (High Bit Rate Audio) with HDMI 1.4 Port (Compliant HDMI monitor is required)
- Supports HDCP 1.4 with HDMI 1.4 and DisplayPort 1.2 Ports
- Supports 4K Ultra HD (UHD) playback with HDMI 1.4 and DisplayPort 1.2 Ports

*Actual support may vary by CPU
**The Max shared memory 16GB requires 32GB system memory installed.

Audio

- 7.1 CH HD Audio with Content Protection (Realtek ALC892/897 Audio Codec)
- Supports Surge Protection

LAN

- PCIE x1 Gigabit LAN 10/100/1000 Mb/s
- Realtek RTL8111H
- Supports Wake-On-LAN
- Supports Lightning/ESD Protection
- Supports Energy Efficient Ethernet 802.3az
- Supports PXE

Slots

AMD Ryzen series CPUs (Matisse, Summit Ridge and Pinnacle Ridge)
- 2 x PCI Express 3.0 x16 Slots (PCIE2: x16 mode; PCIE4: x4 mode)*
AMD Ryzen series CPUs (Picasso, Raven Ridge)
- 2 x PCI Express 3.0 x16 Slots (PCIE2: x8 mode; PCIE4: x4 mode)*
AMD Athlon series CPUs
- 2 x PCI Express 3.0 x16 Slots (PCIE2: x4 mode; PCIE4: x2 mode)*
- 4 x PCI Express 2.0 x1 Slots
- Supports AMD Quad CrossFireX™ and CrossFireX™**

*Supports NVMe SSD as boot disks
If M2_1 is occupied, PCIE4 will be disabled.
**This feature is only supported with Ryzen Series CPUs (Matisse, Summit Ridge, Pinnacle Ridge, Picasso and Raven Ridge).

Storage

- 4 x SATA3 6.0 Gb/s Connectors, support RAID (RAID 0, RAID 1 and RAID 10), NCQ, AHCI and Hot Plug*
- 2 x SATA3 6.0 Gb/s Connectors by ASMedia ASM1061, support NCQ, AHCI and Hot Plug
- 1 x Ultra M.2 Socket (M2_1), supports M Key type 2242/2260/2280 M.2 PCI Express module up to Gen3 x4 (32 Gb/s) (with Matisse, Picasso, Summit Ridge, Raven Ridge and Pinnacle Ridge) or Gen3 x2 (16 Gb/s) (with Athlon series APU)**
- 1 x M.2 Socket (M2_2), supports M Key type 2230/2242/2260/2280/22110 M.2 SATA3 6.0 Gb/s module and M.2 PCI Express module up to Gen3 x2 (16 Gb/s)**

*M2_2, SATA3_3 and SATA3_4 share lanes. If either one of them is in use, the others will be disabled.
**If M2_1 is occupied, PCIE4 will be disabled.
Supports NVMe SSD as boot disks
Supports ASRock U.2 Kit

Connector

- 1 x COM Port Header
- 1 x TPM Header
- 1 x Power LED and Speaker Header
- 1 x RGB LED Header*
- 1 x Addressable LED Header**
- 1 x AMD Fan LED Header***
- 1 x CPU Fan Connector (4-pin)****
- 1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)*****
- 3 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control)*****
- 1 x 24 pin ATX Power Connector
- 1 x 8 pin 12V Power Connector
- 1 x Front Panel Audio Connector
- 2 x USB 2.0 Headers (Support 4 USB 2.0 ports) (Supports ESD Protection)
- 1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports) (Supports ESD Protection)

*Supports in total up to 12V/3A, 36W LED Strip
**Supports in total up to 5V/3A, 15W LED Strip
***The AMD Fan LED Header supports LED strips of maximum load of 3A (36W) and length up to 2.5M.
****The CPU Fan Connector supports the CPU fan of maximum 1A (12W) fan power.
*****The CPU/Water Pump Fan supports the water cooler fan of maximum 2A (24W) fan power.
******The Chassis/Water Pump Fan supports the water cooler fan of maximum 2A (24W) fan power.
CPU_FAN2/WP, CHA_FAN1/WP, CHA_FAN2/WP and CHA_FAN3/WP can auto detect if 3-pin or 4-pin fan is in use.

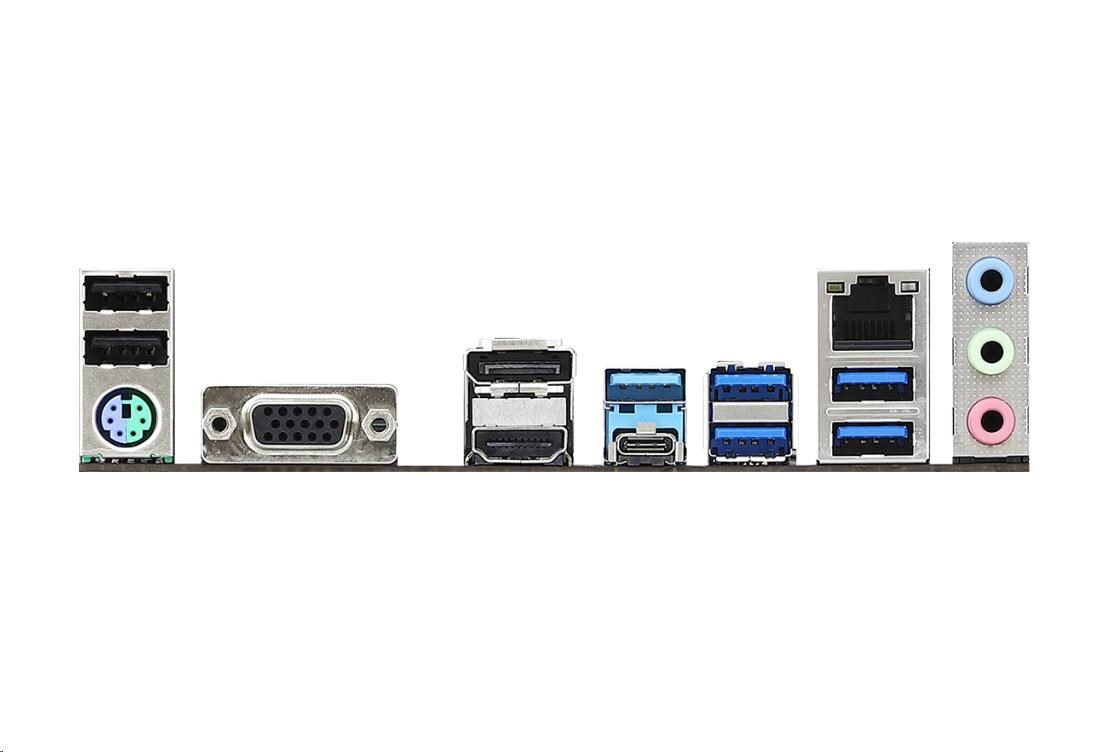

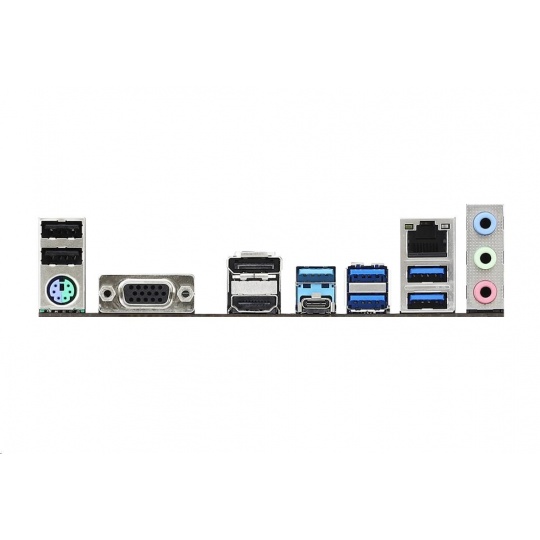

Rear Panel I/O

- 1 x PS/2 Mouse/Keyboard Port
- 1 x D-Sub Port
- 1 x HDMI Port
- 1 x DisplayPort 1.2
- 2 x USB 2.0 Ports (Supports ESD Protection)
- 1 x USB 3.2 Gen2 Type-A Port (10 Gb/s) (Supports ESD Protection)
- 1 x USB 3.2 Gen2 Type-C Port (10 Gb/s) (Supports ESD Protection)
- 4 x USB 3.2 Gen1 Ports (Supports ESD Protection)
- 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED)
- HD Audio Jacks: Line in / Front Speaker / Microphone

Software and UEFI

Software
- ASRock A-Tuning
- ASRock Polychrome SYNC
- ASRock XFast LAN
UEFI
- ASRock Full HD UEFI
- ASRock Instant Flash
- ASRock Easy RAID Installer

*These utilities can be downloaded from ASRock Live Update & APP Shop.

Support CD

- Drivers, Utilities, AntiVirus Software (Trial Version), Google Chrome Browser and Toolbar

Accessories

- Quick Installation Guide, Support CD, I/O Shield
- 2 x SATA Data Cables
- 2 x Screws for M.2 Sockets

Hardware Monitor

- Temperature Sensing: CPU, MB
- Fan Tachometer: CPU, CPU/Water Pump, Chassis/Water Pump Fans
- Quiet Fan (Auto adjust chassis fan speed by CPU temperature): CPU, CPU/Water Pump, Chassis/Water Pump Fans
- Fan Multi-Speed Control: CPU, CPU/Water Pump, Chassis/Water Pump Fans
- Voltage monitoring: +12V, +5V, +3.3V, Vcore

Form Factor

- ATX Form Factor: 12.0-in x 8.8-in, 30.5 cm x 22.4 cm
- Solid Capacitor design

OS

- Microsoft® Windows® 10 64-bit

Certifications

- FCC, CE
- ErP/EuP ready (ErP/EuP ready power supply is required)

.
ParametryPorovnání
Technologie paměti RAM
DDR4
Socket (patice)
Socket AM4
Chipset
AMD
Chipset
AMD B450
PCI Express x16
2
Podpora RAID
1
Podpora RAID
10
COM port
Ano
LPT port
Ne
Formát základní desky
ATX
3.5mm Jack
Ano
Bezdrátové připojení
bez
Pro procesory
AMD
Počet paměťových slotů
4
DisplayPort
1
TPM
Ano
USB 2
6
USB 3
8
PCI
0
M.2 slot
2
SATA 3
6
VGA
1
DVI
0
HDMI
1
Led Header
Ano
PCI Express x1
4
USB C
1
LAN
1Gbit/s
