High-definition performance for personal computing.

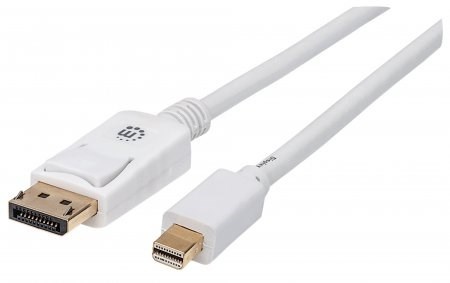

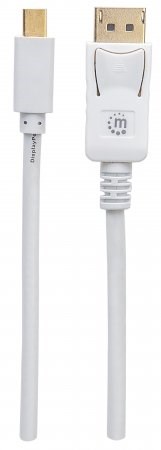

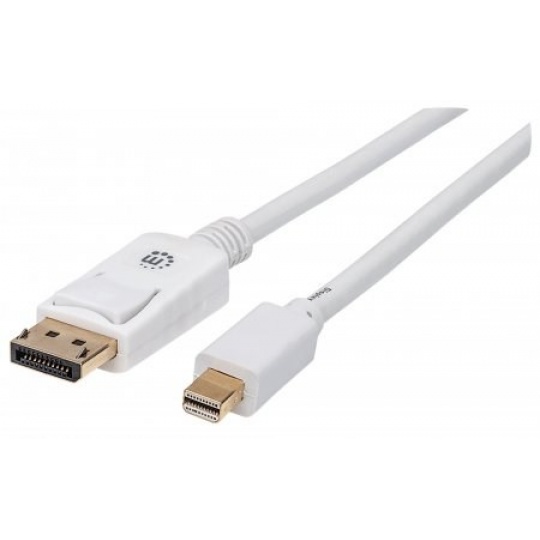

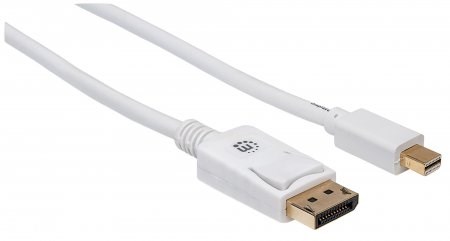

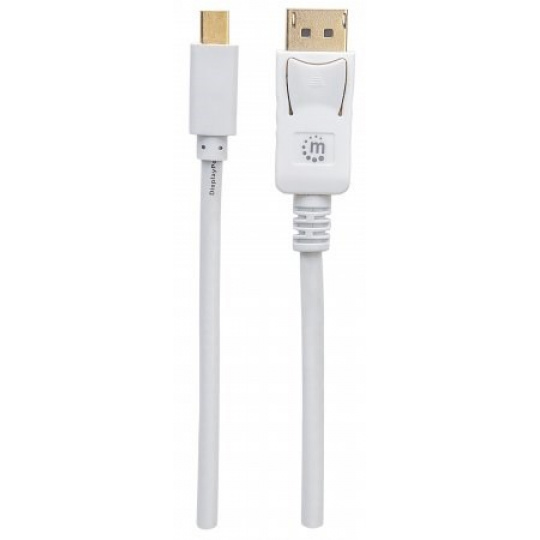

Manhattan Mini DisplayPort Cables provide a single-cable solution that delivers both high-definition digital audio and video signals between desktop and notebook computers and an output device. With 17.28 Gbps bandwidth (HBR2), DeepColor and 24-bit, eight-channel uncompressed audio capability, the 20-pin connector is small, compact and ideal for use with Mini DisplayPort-equipped devices, flat-panel displays, slim-profile devices and many future consumer electronics. Full foil-and-braided shielding, molded boots with strain relief, protective PVC jackets and gold-plated connections help Manhattan Mini DisplayPort Cables provide maximum conductivity and clear, crisp signal transmissions with reduced EMI interference and distortion.

Features:

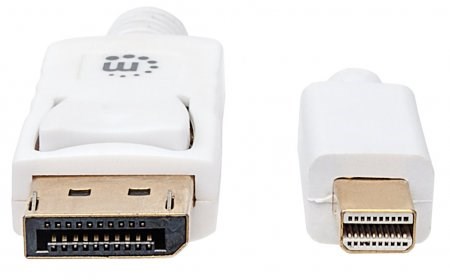

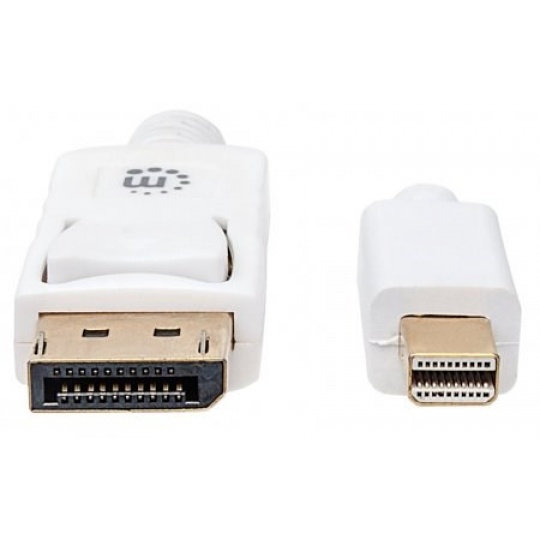

• Provides Mini DisplayPort 20-pin male to DisplayPort 20-pin male connections
• Delivers high-bandwidth, digital audio/visual signals from Mini DisplayPort and DisplayPort enabled displays and devices – up to 4K@60Hz resolution
• Fully shielded to reduce EMI and other interference sources
• Plug and play for box-to-box applications
• Molded PVC boot and strain relief
• Lifetime Warranty

Specifications:

Standards and Certifications

• UL 20276
  Connectors
• Mini DisplayPort 20-pin male
• DisplayPort 20-pin male
• Gold-plated contacts
• Molded PVC
• Built-in strain relief
  Cable
• Length: 2 m
• 32-AWG conductors
• Withstanding voltage: 300 VDC
• Thermal plastic casing
• Shielded
  General
• Meets or exceeds existing DisplayPort 1.2 standards
• Supports 17.28 Gbps data rate, 4096 x 2160 resolution (WQXGA) and HDCP
  Package Contents
• Mini DisplayPort Monitor Cable
