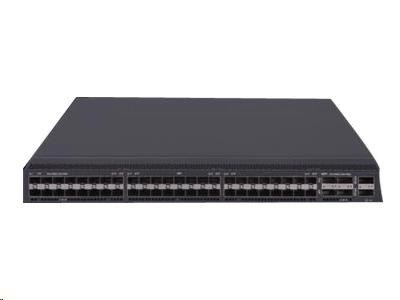

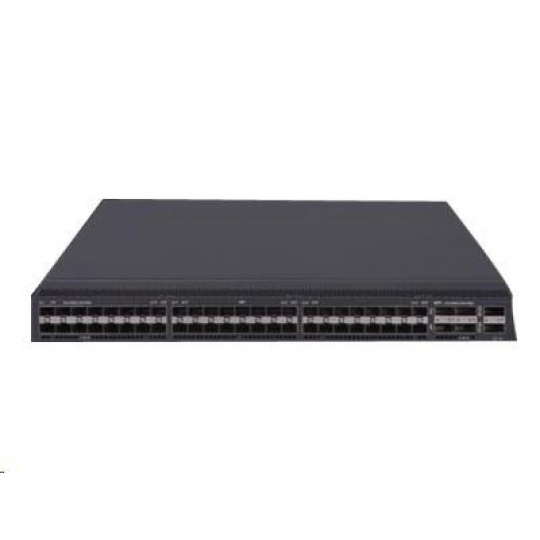

HPE FlexFabric 5940 48SFP+ 6QSFP+ Switch JH395A RENEW
HPE FlexFabric 5940 48SFP+ 6QSFP+ Switch JH395A RENEW
HPE FlexFabric 5940 48SFP+ 6QSFP+ Switch JH395A RENEW
I/O ports and slots
48 fixed 1000/10000 SFP+ ports
6 QSFP+ 40GbE ports
Additional ports and slots
1 RJ-45 serial console port
1 RJ-45 out-of-band management port
1 USB 2.0
1 Mini USB 2.0
Power supplies
2 power supply slots
1 minimum power supply required (ordered separately)
Fan tray
2 fan tray slots
The customer must order fan trays, as fan trays are not included with the switch. This system requires two same-direction airflow fan trays to function properly. The system should not be operated with only one fan tray for more than 24 hours. The system should not be operated without a fan tray for more than two minutes. The system should not be operated outside of the temperature range of 32°F (0°C) to 113°F (45°C). Failure to comply with these operating requirements may void the product warranty.
Physical characteristics
Dimensions
17.32(w) x 18.11(d) x 1.72(h) in (44 x 46 x 4.36 cm)
Weight
22.05 lb (10 kg) shipping weight
Memory and processor
1 GB flash; Packet buffer size: 12.2 MB, 4 GB SDRAM
Performance
10 Gbps Latency
< 1 µs (64-byte packets)
Throughput
up to 1071 Mpps
Routing/Switching capacity
1440 Gbps
Routing table size
120000 entries (IPv4), 60000 entries (IPv6)
MAC address table size
288000 entries
Environment
Operating temperature
32°F to 113°F (0°C to 45°C)
Operating relative humidity
10% to 90%, noncondensing
Acoustic
Low-speed fan: 65.7 dB, High-speed fan: 70.6 dB
Electrical characteristics
Maximum heat dissipation
887 BTU/hr (935.79 kJ/hr)
Voltage
100 - 240 VAC, rated
-40 to -60 VDC, rated
(depending on power supply chosen)
Maximum power rating
213 W
Frequency
50/60 Hz
Notes
Maximum power rating and maximum heat dissipation are the worst-case theoretical maximum numbers provided for planning the infrastructure with fully loaded PoE (if equipped), 100% traffic, all ports plugged in, and all modules populated.
Safety
UL 60950-1; EN 60825-1 Safety of Laser Products-Part 1; EN 60825-2 Safety of Laser Products-Part 2
IEC 60950-1; CAN/CSA-C22.2 No. 60950-1; Anatel; ULAR; GOST; EN 60950-1/A11; FDA 21 CFR Subchapter J; NOM; ROHS Compliance
Emissions
VCCI Class A; EN 55022 Class A; ICES-003 Class A; ANSI C63.4 2003; AS/NZS CISPR 22 Class A; EN 61000-3-2:2006; EN 61000-3-3:1995 +A1:2001+A2:2005; EMC Directive 2004/108/EC; FCC (CFR 47, Part 15) Class A; ANSI/TIA-1057 LLDP Media Endpoint Discovery (LLDP-MED)
Immunity
Generic
ETSI EN 300 386 V1.3.3
EN
EN 55024:1998+ A1:2001 + A2:2003
ESD
EN 61000-4-2; IEC 61000-4-2
Radiated
EN 61000-4-3; IEC 61000-4-3
EFT/Burst
EN 61000-4-4; IEC 61000-4-4
Surge
EN 61000-4-5; IEC 61000-4-5
Conducted
EN 61000-4-6; IEC 61000-4-6
Power frequency magnetic field
IEC 61000-4-8; EN 61000-4-8
Voltage dips and interruptions
EN 61000-4-11; IEC 61000-4-11
Harmonics
EN 61000-3-2, IEC 61000-3-2
Flicker
EN 61000-3-3, IEC 61000-3-3
Management
IMC - Intelligent Management Center; Command-line interface; Out-of-band management; SNMP manager; Telnet; FTP
Notes
The customer must order a power supply, as the device does not come with one. At least one JC680A or JC681A is required.
Services
Refer to the Hewlett Packard Enterprise website at: http://www.hpe.com/networking/services for details on the service-level descriptions and product numbers. For details about services and response times in your area, please contact your local Hewlett Packard Enterprise sales office.
.
