AVERMEDIA CL511HN, 4Kp60 HDR HDMI Low Profile Video Capture Card

Druh zařízení:Střihová karta; Typ rozhraní:PCI-E.... více
Běžná cena: 13 560  (-7%)
10 414.88 Kč bez DPH
Skladem 1 ks
12 602 Kč
Vyberte si zvýhodněné balení
Množstevní slevy
Kód: 1021315
EAN: 4710710679293
Záruka: 24 Měsíc(ů)
Výrobce: AVerMedia
Popis a parametry

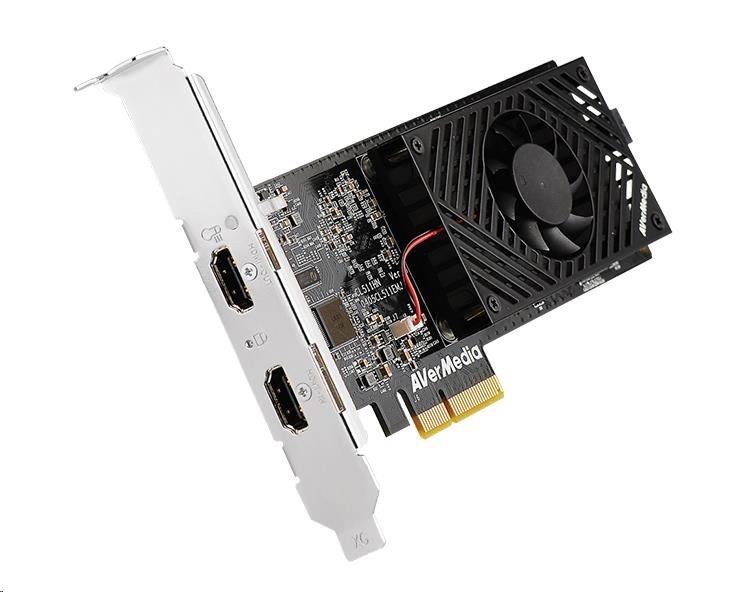

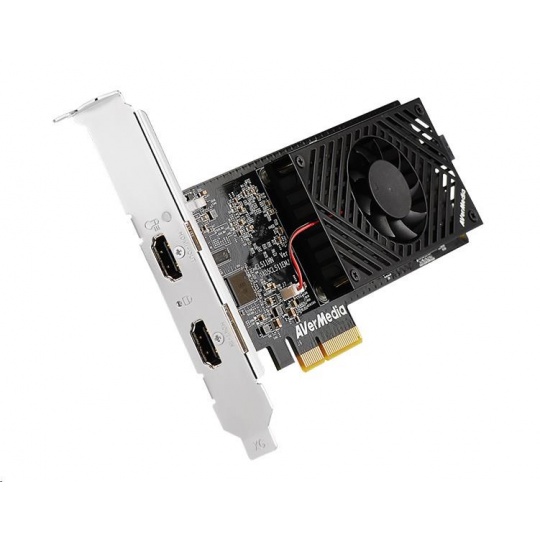

AVERMEDIA CL511HN, 4Kp60 HDR HDMI Low Profile Video Capture Card

AVerMedia AVerGrabber CL511HN, the 4Kp60 HDR HDMI low profile video capture card, is equipped by one HDMI channel with the embedded audio input and supports astounding uncompressed real-time video capturing up to 4096 x 2160 60fps 4K resolution.
At the frame rate of 60 fps, CL511HN can improve the quality of a wide range of media recorded for businesses, universities, broadcasting, and manufacturing facilities, which can eventually provide a more lifelike and smooth video playback experience.


  • Maximum input resolution up to 4096x2160/60fps
  • Maximum capturing and recording Up to 4096x2160/60fps
  • Realize the industry only “Power-off Pass-through” function
  • Low-profile PCI Express form factor
  • Support hardware up/down scaling, de-interlacing, and color space convert
  • Support 10-bit color depth
  • Built-in Signal-lock LED Indicator and RGB LED Temperature Indicator

Low Profile Form Factor
Suitable for small-footprint embedded platform, the compact low profile form factor design provides a better use of internal space and reduces cable routing. It increases the use of interior space for a more flexible heat spreading solution.

Power-off Pass-through
Realize the Industry only “Power-off Pass-through”. Capture images even when your computer is not turned on.

Hardware Video Processing
CL511HN has built-in AVerMedia Video Engine technology which implements most useful video enhancing features to significantly reduce the efforts of CPU and the software development. In other words, this can help our clients to achieve the better cost saving of the hardware platform and the development resource.

Built-in Signal-lock LED Indicator and RGB LED Temperature Indicator
LED for Signal-lock Indicator: The LED light goes off when HDMI is not plugged in or there is no HDMI signal input. The LED light turns green when HDMI signal is locked (hot-plugging 5V pull high).

RGB Color LED for Temperature Indicator:
Different temperature ranges of the main chip junction temperature (Tj) will produce a different color LED:
Green is indicated for temperatures 0~73°C (32~163.4°F)
Orange is indicated for temperatures 73~80°C (163.4~176°F)
Red is indicated for temperatures 80~85°C (176~185°F)
Blinking red is indicated for temperatures over 85°C (185°F)

Support up to 4:4:4 10-bit RGB and YUV
The 10-bit color depth support is especially useful in the medical imaging applications where images with the slightest color variation may indicate different conditions or stages of diseases. This in turn may assist doctors in accurately diagnosing patient conditions.

Versatile AVerMedia SDK
Industrial customers can develop vertical applications flexibly and efficiently by using AVerMedia’s exclusive designed SDK with features such as device control, media capture, A/V processing and more.


Host Interface PCIe Gen2 x 4
Audio Interface HDMI embedded PCM
Audio Format HDMI embedded audio / 8CH LPCM Audio
Audio Sampling Rate 32/44.1/48KHz
Connector Type HDMI Type A
Input Interface HDMI 2.0, (Pass-Through)
Video Format YUV444: IYU2, AYUV, V410, Y410
YUV422: YUY2, YUYV, UYVY, V210, Y210
YUV420: I420, NV12, YV12, P010
RGB: RGB565, RGB555, RGB24, RGB32, ARGB
Color Depth 8 bit/10bit
Channel No. 1 channel
Max. Input Resolution 4096x2160 60fps
Max. Recording Resolution 4096x2160 60fps
Encoding Mode Software Encoding
Multi-Card Support Yes
Supported OS Windows 7, 8.1, 10 (32/64-Bit)
Linux (based on V4L2, support x64)
Form Factor PCIe Low Profile
Dimension (L x W) 151 x 68.7mm
Power Consumption 15W
Operating Temperature 0°C ~ 55C
Operating Humidity 5% - 95% Relative Humidity
Safety Certification FCC / CE
