ASRock MB Sc AM4 Fatal1ty B450 Gaming-ITX/ac, AMD B450, 2xDDR4, VGA, WIFI, mini-ITX

Pro procesory:AMD; Socket (patice):Socket AM4; Chipset:AMD B450, AMD; Počet paměťových slotů:2; Technologie paměti RAM:DDR4; Formát základní desky:Mini-ITX; Podpora RAID:1, 10; PCI Express x16:1; PCI Express x1:0; USB 2:4; USB 3:6; USB C:1; SATA 3:4; PCI:0; M.2 slot:1; 3.5mm Jack; LAN:1Gbit/s; VGA:0; DVI:0; HDMI:1; DisplayPort:1; Bezdrátové připojení:Wi-Fi.... více
Běžná cena: 4 220  (-14%)
2 990.91 Kč bez DPH
Na dotaz
3 619 Kč
ks
Vyberte si zvýhodněné balení
Množstevní slevy
Kód: 380463
EAN: 4717677336238
Záruka: 24 Měsíc(ů)
Výrobce: ASRock
Popis a parametry

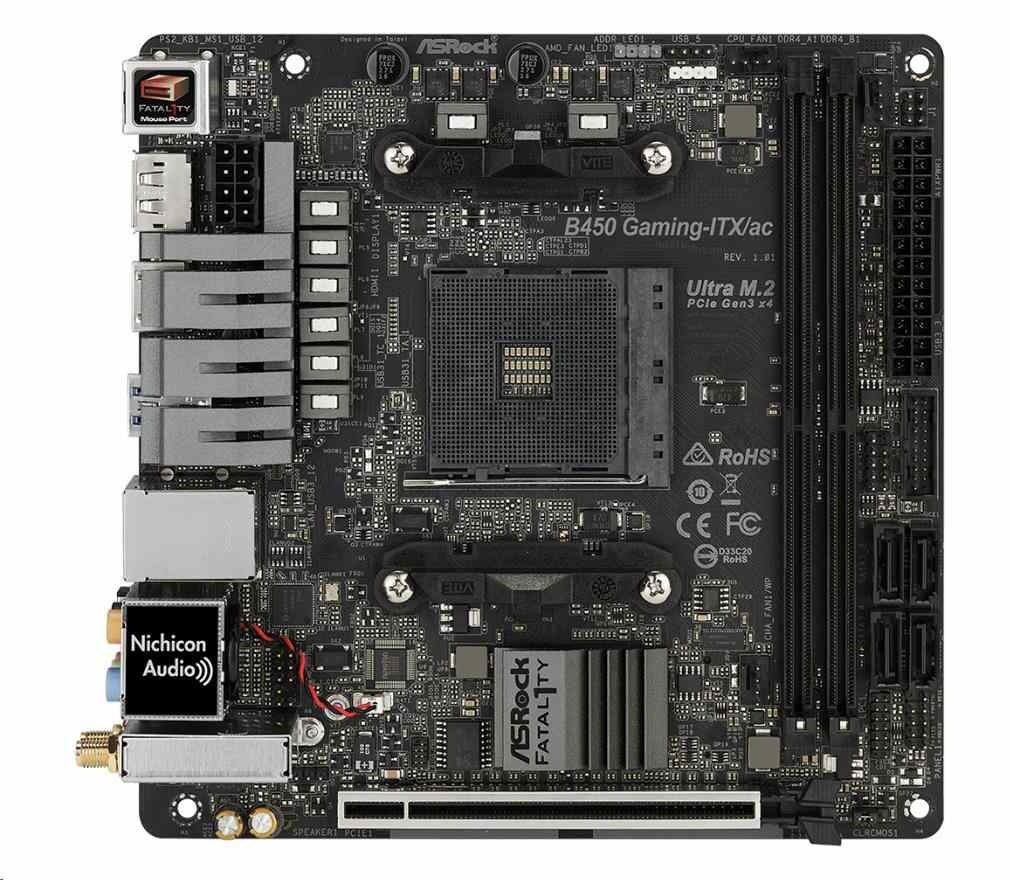

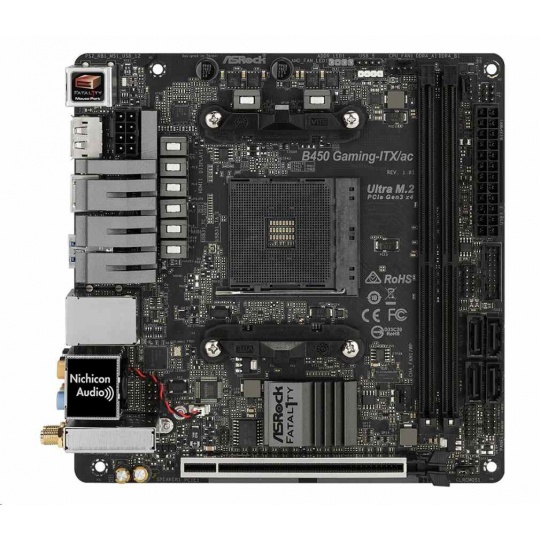

ASRock MB Sc AM4 Fatal1ty B450 Gaming-ITX/ac, AMD B450, 2xDDR4, VGA, WIFI, mini-ITX

Fatal1ty B450 Gaming-ITX/ac

  • AMD AM4 Socket
  • Supports DDR4 3466+ (OC)
  • 1 PCIe 3.0 x16
  • Graphics Output: DisplayPort 1.2, HDMI 2.0
  • 7.1 CH HD Audio (Realtek ALC1220 Audio Codec), Supports Creative Sound Blaster™ Cinema 5
  • 4 SATA3, 1 Ultra M.2 (PCIe Gen3 x4 & SATA3)
  • 2 USB 3.1 Gen2 (Rear Type-A+C)
  • 4 USB 3.1 Gen1 (2 Front, 2 Rear)
  • Intel® Gigabit LAN
  • Intel® 802.11ac WiFi + BT 4.2

TECHNICAL SPECIFICATIONS

Gaming Armor Power
- Hi-Density Power Connector (8 pin)
Memory
- 15µ Gold Contact in DIMM Slots
VGA Card
- 15µ Gold Contact in VGA PCIe Slot (PCIE1)
Internet
- Intel® LAN
Cooling
- 2oz Copper PCB
Audio
- Creative Sound Blaster™ Cinema 5
Unique Feature USB 3.1 Gen2 Type-A Port (10 Gb/s)
- ASRock USB 3.1 Gen2 Type-C Port (10 Gb/s)
ASRock Super Alloy
- Premium Power Choke
- Dual-N MOSFET
- Nichicon 12K Black Caps (100% Japan made high quality conductive polymer capacitors)
- Matte Black PCB
- High Density Glass Fabric PCB
- 2oz Copper PCB Intel® 802.11ac WiFi
ASRock Ultra M.2 (PCIe Gen3 x4 & SATA3)
ASRock Full Spike Protection (for all USB, Audio, LAN Ports)
ASRock Live Update & APP Shop
CPU - AMD AM4 Socket
- Digi Power design
- 8 Power Phase design
- Supports 105W Water Cooling (Pinnacle Ridge); Supports 95W Water Cooling (Summit Ridge); Supports 65W Water Cooling (Raven Ridge)
Chipset - AMD Promontory B450
Memory - Dual Channel DDR4 Memory Technology
- 2 x DDR4 DIMM Slots
- AMD Ryzen series CPUs (Pinnacle Ridge) support DDR4 3466+(OC) / 3200(OC) / 2933/2667/2400/2133 ECC & non-ECC, un-buffered memory*
- AMD Ryzen series CPUs (Summit Ridge) support DDR4 3466+(OC) / 3200(OC) / 2933(OC) / 2667/2400/2133 ECC & non-ECC, un-buffered memory*
- AMD Ryzen series CPUs (Raven Ridge) support DDR4 3466+(OC) / 3200(OC) / 2933(OC) / 2667/2400/2133 non-ECC, un-buffered memory*
- Max. capacity of system memory: 32GB**
- 15µ Gold Contact in DIMM Slots
More info in specification.
Graphics - Integrated AMD Radeon™ Vega Series Graphics in Ryzen Series APU*
- Integrated AMD Radeon™ R-Series Graphics in A-series APU*
- DirectX 12, Pixel Shader 5.0
- Max. shared memory 2GB
- Dual graphics output: Support HDMI and DisplayPort 1.2 by independent display controllers
- Supports HDMI 2.0 with max. resolution up to 4K x 2K (4096x2160) @ 60Hz
- Supports DisplayPort 1.2 with max. resolution up to 4K x 2K (4096x2160) @ 60Hz
- Supports Auto Lip Sync, Deep Color (12bpc), xvYCC and HBR (High Bit Rate Audio) with HDMI 2.0 Ports (Compliant HDMI 2.0 monitor is required)
- Supports HDCP with HDMI 2.0 and DisplayPort 1.2 Ports
- Supports 4K Ultra HD (UHD) playback with HDMI 2.0 and DisplayPort 1.2 Ports
*Actual support may vary by CPU
Slots AMD Ryzen series CPUs (Summit Ridge and Pinnacle Ridge)
- 1 x PCI Express 3.0 x16 Slot (PCIE1: x16 mode)*
AMD Ryzen series CPUs (Raven Ridge)
- 1 x PCI Express 3.0 x16 Slot (PCIE1: x8 mode)*
- 1 x Vertical M.2 Socket (Key E) with the bundled WiFi-802.11ac module (on the rear I/O)
- 15µ Gold Contact in VGA PCIe Slot (PCIE1)
*Supports PCIe riser cards to extend one x16 slot to two x8 slots if you install AMD Ryzen series CPUs
Supports NVMe SSD as boot disks
Storage - 4 x SATA3 6.0 Gb/s Connectors, support RAID (RAID 0, RAID 1 and RAID 10), NCQ, AHCI and Hot Plug
- 1 x Ultra M.2 Socket, supports M Key type 2280 M.2 SATA3 6.0 Gb/s module and M.2 PCI Express module up to Gen3 x4 (32 Gb/s) (with Summit Ridge, Raven Ridge and Pinnacle Ridge)*
*Supports NVMe SSD as boot disks
LAN - Gigabit LAN 10/100/1000 Mb/s
- GigaLAN Intel® I211AT
- Supports Wake-On-LAN
- Supports Lightning/ESD Protection
- Supports Energy Efficient Ethernet 802.3az
- Supports PXE
Wireless LAN - Intel® 802.11ac WiFi Module
- Supports IEEE 802.11a/b/g/n/ac
- Supports Dual-Band (2.4/5 GHz)
- Supports high speed wireless connections up to 433Mbps
- Supports Bluetooth 4.2 / 3.0 + High speed class II
Connector - 1 x LPC Header
- 1 x Addressable LED Header*
- 1 x AMD Fan LED Header**
- 1 x CPU Fan Connector (4-pin)***
- 2 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control)****
- 1 x 24 pin ATX Power Connector
- 1 x 8 pin 12V Power Connector (Hi-Density Power Connector)
- 1 x Front Panel Audio Connector (15µ Gold Audio Connector)
- 1 x AMD LED Fan USB Header
- 1 x USB 2.0 Header (Supports 2 USB 2.0 ports) (Supports ESD Protection)
- 1 x USB 3.1 Gen1 Header (Supports 2 USB 3.1 Gen1 ports) (Supports ESD Protection)
*Supports in total up to 5V/3A, 15W LED Strip
**The AMD Fan LED Header supports LED strips of maximum load of 3A (36W) and length up to 2.5M.
***The CPU Fan Connector supports the CPU fan of maximum 1A (12W) fan power.
****The Chassis/Water Pump Fan supports the water cooler fan of maximum 2A (24W) fan power.
CHA_FAN1/WP and CHA_FAN2/WP can auto detect if 3-pin or 4-pin fan is in use.
Audio - 7.1 CH HD Audio with Content Protection (Realtek ALC1220 Audio Codec)
- Premium Blu-ray Audio support
- Supports Surge Protection
- Nichicon Fine Gold Series Audio Caps
- 120dB SNR DAC with Differential Amplifier
- Pure Power-In
- Direct Drive Technology
- PCB Isolate Shielding
- Impedance Sensing on Line Out port
- Individual PCB Layers for R/L Audio Channel
- Gold Audio Jacks
- Supports Creative Sound Blaster™ Cinema 5
Rear panel I/O - 2 x Antenna Ports
- 1 x PS/2 Mouse/Keyboard Port
- 1 x HDMI Port
- 1 x DisplayPort 1.2
- 1 x Optical SPDIF Out Port
- 2 x USB 2.0 Ports (Supports ESD Protection)*
- 1 x USB 3.1 Gen2 Type-A Port (10 Gb/s) (Supports ESD Protection)
- 1 x USB 3.1 Gen2 Type-C Port (10 Gb/s) (Supports ESD Protection)
- 2 x USB 3.1 Gen1 Ports (Supports ESD Protection)
- 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED)
- HD Audio Jacks: Rear Speaker / Central / Bass / Line in / Front Speaker / Microphone (Gold Audio Jacks)
*1 x Fatal1ty Mouse Port (USB 2.0) is included
Software and UEFI Software
- ASRock F-Stream
- ASRock Polychrome RGB
- ASRock Key Master
- ASRock XFast LAN
UEFI
- ASRock Full HD UEFI
- ASRock Instant Flash
- ASRock Easy RAID Installer
*These utilities can be downloaded from ASRock Live Update & APP Shop.
Support CD - Drivers, Utilities, AntiVirus Software (Trial Version), Google Chrome Browser and Toolbar
BIOS - 128Mb AMI UEFI Legal BIOS with GUI support
- Supports "Plug and Play"
- ACPI 5.1 compliance wake up events
- Supports jumperfree
- SMBIOS 2.3 support
- CPU, DRAM, PCH 1.05V, PROM 2.5V, Voltage Multi-adjustment
Accessories - Quick Installation Guide, Support CD, I/O Shield
- 2 x SATA Data Cables
- 2 x ASRock WiFi 2.4/5 GHz Antennas
- 1 x Screw for M.2 Socket
Hardware Monitor - Temperature Sensing: CPU, Chassis/Water Pump Fans
- Fan Tachometer: CPU, Chassis/Water Pump Fans
- Quiet Fan (Auto adjust chassis fan speed by CPU temperature): CPU, Chassis/Water Pump Fans
- Fan Multi-Speed Control: CPU, Chassis/Water Pump Fans
- Voltage monitoring: +12V, +5V, +3.3V, CPU Vcore
Operating System - Microsoft® Windows® 10 64-bit
Form Factor - Mini-ITX Form Factor: 6.7-in x 6.7-in, 17.0 cm x 17.0 cm
Certifications - FCC, CE
- ErP/EuP ready (ErP/EuP ready power supply is required)

.
Technologie paměti RAM
DDR4
Socket (patice)
Socket AM4
Integrovaná grafická karta
Ano (CPU)
Chipset
AMD
PCI express 16x
1
Integrovaná LAN karta
1
Podpora RAID
10
Další rozhraní
M.2
COM port
Ne
LPT port
Ne
Formát
Mini-ITX
3.5mm Jack
Ano
Bezdrátové připojení
Wi-Fi
Pro procesory
AMD
Počet paměťových slotů
2
DisplayPort
1
TPM
Ne
USB 2
4
USB 3
6
PCI
1
M.2 slot
1
SATA 3
4
VGA
1
DVI
1
HDMI
1
Led Header
Ano
PCI Express x1
3
USB C
1
LAN
1Gbit/s
